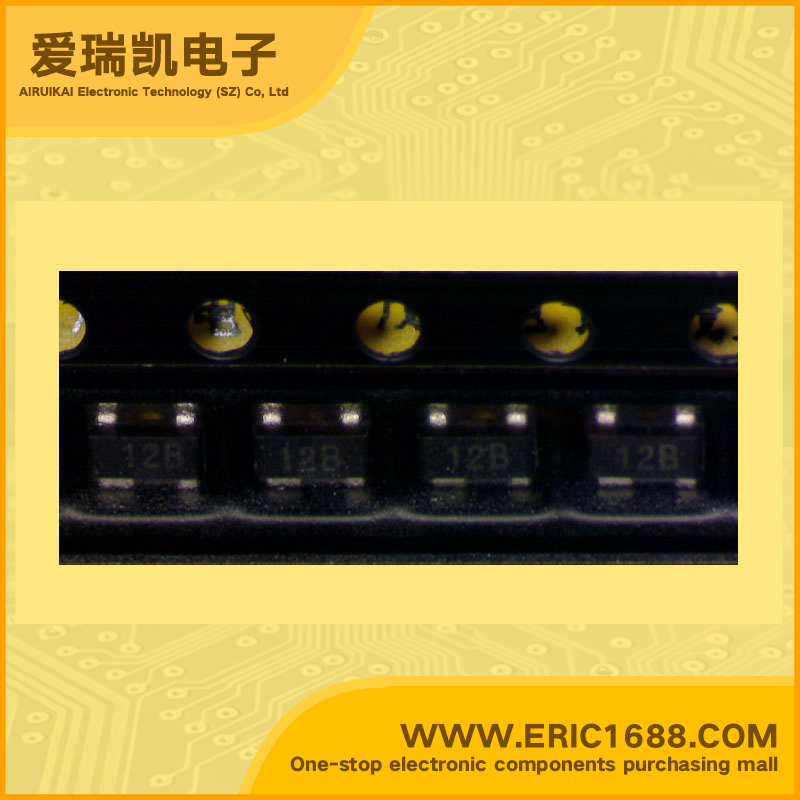

PSLC12C-LF-T7 TVS/ESD 12V 11A SOT-23-12V marking 12B
| 极性 Polarization | 双向 Bidirectional |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | 12V |
| 反向击穿电压VBR Breakdown Voltage | 13.3V |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | 350W |
| 峰值脉冲电流IPPm Peak Forward Surge Current | 11A |
| 额定耗散功率Pd Power dissipation | |
| Description & Applications | FEATURES • LOW CAPACITANCE TVS ARRAY • 350 Watts Peak Pulse Power per Line (tp=8/20µs) • Unidirectional & Bidirectional Configurations • Available in Multiple Voltage Types Ranging From 3V to 24V • Protects One Line • ESD Protection > 40 kilovolts • Low Clamping Voltage • Low Capacitance: 5pF • RoHS Compliant |
| 描述与应用 | 特性 •低电容TVS阵列 •350瓦峰值脉冲功率线（TP =8/20μS） •单向及双向配置 •多重从3V到24V电压类型 •保护一个线 •ESD保护>40千伏 •低钳位电压 •低电容：5PF •符合限制有害物质指令（RoHS）规范要求 |
