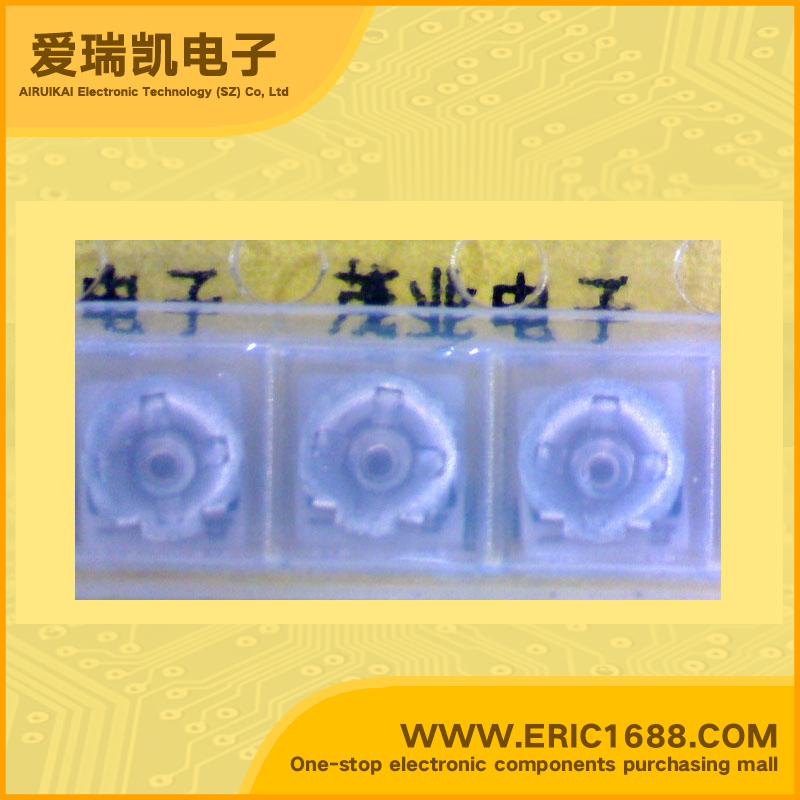

Trimmer Potentiometers PVZ3A102A01R00(POZ3AN-1-102N-T00) 1KΩ/Ohm 3X3-1K MARKING 13
| 电阻值 Resistance |
1KΩ/Ohm |
| 额定功率 Power |
0.1W,1/10W |
| 容差 Tolerance |
±30% |
| 温度系数 Temperature Coefficient |
±500ppm/°C |
| 圈数 Number of Turns |
单圈 Single |
| 调节类型 Adjustment Type |
顶部调节 Top Adjustment |
| 端子类型 Termination Style |
J引线 J Lead |
| Description & Applications | Trimmer Potentiometers Features 1. Excellent solderability characteristics are achieved via special plating techniques on each termination. 2. Specially designed substrate prevents wicking of fl ux onto the top of the part body. 3. Funnel shaped adjustment slot allows for in-process automatic adjustment. (PVZ3A/PVZ3H/PVZ3K Series) 4. High-heat resistance type is available (PVZ3A_C01/PVZ3K_E01). |
| 描述与应用 | 微调电位器 特点 1。优良的可焊性等特点，实现每个终端上通过特殊的电镀技术。 2。专门设计的衬底防止助焊剂的毛细作用到零件本体的顶部。 3。漏斗形调整槽可为过程中的自动调节。 （系列PVZ3A/PVZ3H/PVZ3K） 4。提供高耐热性不同 （PVZ3A_C01/PVZ3K_E01）。 |
