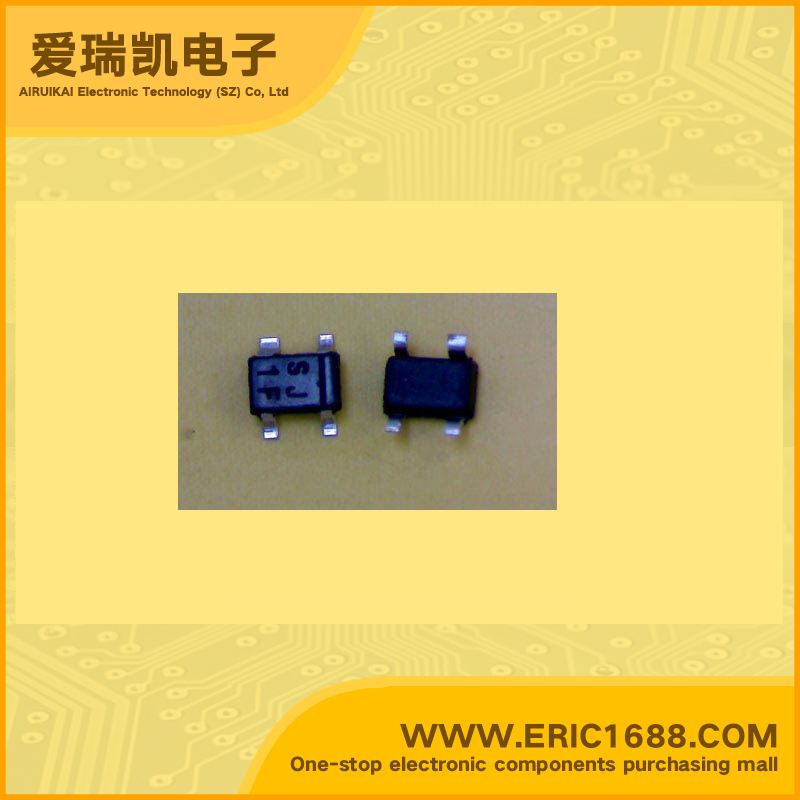

R1114Q181D LDO Voltage Regulator 1.8V 320mV/0.32V SOT-343/SC-82 marking SJ Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
6.5V
输出电压VOUT
Voltage - Output
1.8V
输出电流Io
Current - Output
150mA/0.15A
最大压降VDO
Voltage - Dropout
320mV/0.32V
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
无 No
最大耗散功率Pd
Power dissipation
380mW/0.38W
Description & ApplicationsLOW NOISE 150mA LDO REGULATOR ;•Low Supply Current Typ. 75µA • Standby Mode Typ. 0.1µA • Low Dropout Voltage Typ. 0.22V (IOUT=150mA 3.0V Output type) • High Ripple Rejection Typ. 70dB (f=1kHz 3.0V Output type) Typ. 60dB (f=10kHz) • Low Temperature-Drift Coefficient of Output Voltage Typ. ±100ppm/°C • Excellent Line Regulation Typ. 0.02%/V • High Output Voltage Accuracy ±2.0% • Output Voltage Stepwise setting with a step of 0.1V in the range of 1.5V to 4.0V is possible • Built-in Fold Back Protection Circuit Typ. 40mA (Current at short mode) • Ceramic capacitors are recommended to be used with this IC CIN=COUT=1µF (VOUT<2.5V) CIN=1µF, COUT=0.47µF (VOUT>= 2.5V) • Power source for portable communication equipment. • Power source for electrical appliances such as cameras, VCRs and camcorders. • Power source for battery-powered equipment.
描述与应用低噪声150MA LDO稳压器;•低电源电流典型。 75μA •待机模式典型。 0.1μA •低压差典型。 0.22V(IOUT=150MA3.0V输出类型) •高纹波抑制比典型。 70分贝(F =1kHz的3.0V输出类型)  典型。 60分贝(F =10kHz时) •低温度漂移系数的输出电压典型值。温度系数±100ppm/°C •卓越的线路调整典型。 0.02%/ V •高输出电压精度±2.0% •每步0.1V的输出电压逐步设置   1.5V到4.0V的范围内是可能的 •内置折返保护电路的典型。 40mA(附加电流在很短的模式) •推荐使用陶瓷电容用这个IC CIN= COUT=1μF(VOUT<2.5V)     CIN=1μF,COUT=0.47μF(VOUT=2.5V) •便携式通信设备的电源。 •电源的电器,如摄像机,录像机和摄像机。 •电池供电设备的电源。
