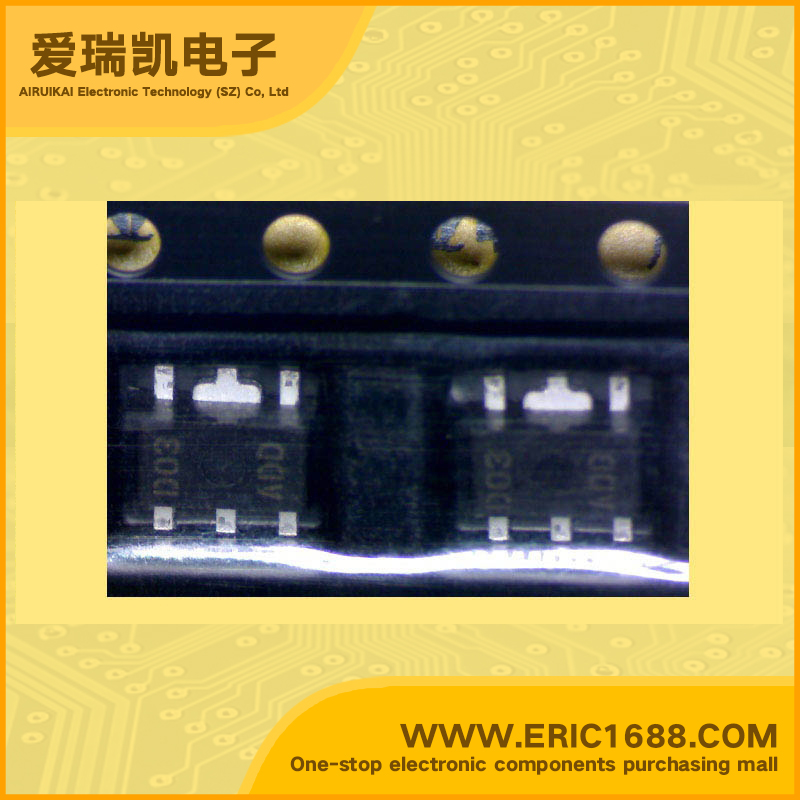

R1150H003A-T1 LDO Voltage Regulator 3V 300mV/0.3V SOT89-5 marking D03A Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 24V |
| 输出电压VOUT Voltage - Output | 3V |
| 输出电流Io Current - Output | 120mA/0.12A |
| 最大压降VDO Voltage - Dropout | 300mV/0.3V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 无 No |
| 最大耗散功率Pd Power dissipation | 500mW/0.5W |
| Description & Applications | VOLTAGE REGULATOR (with Wide Input Voltage Range) with RESET ;•Ultra-Low Supply Current 7.0µA • Input Voltage Max. 24.0V • Output Voltage (VR)2.1V to 14.0V • Detector Threshold Voltage (VDET)2.3V to 15.0V • High Output Voltage Accuracy .±2.0% (VR), ±2.5% (VD) • Output Current ..Min. 150mA (VOUT=5.0V) • Built-in Current Limit Circuit, Thermal Shutdown Circuit (VR) • Monitoring VDD voltage • Monitoring sense pin (SENSE) voltage • Monitoring VOUT pin voltage. • Power source and Reset circuit for cameras, videos and mobile telecommunication equipment. • Power source and Reset circuit for battery-operated equipment. • Power source and Reset circuit for home appliances. |
| 描述与应用 | 稳压器 （宽输入电压范围）复位;•超低电源电流7.0μA •输入电压马克斯。 24.0V •输出电压（VR）2.1V到14.0V •检测阈值电压（VDET）2.3V到15.0V •高输出电压精度±2.0％（VR），±2.5％（VD） •输出电流..最小。电流150mA（VOUT=5.0V） •内置电流限制电路，热关断电路（VR） •监视VDD电压 •监控检测引脚（SENSE）电压 •监控VOUT引脚电压。 •电源和复位电路，摄像头，视频和移动通信设备。 •电源和复位电路，为电池供电设备。 •电源和复位电路的家电。 |
