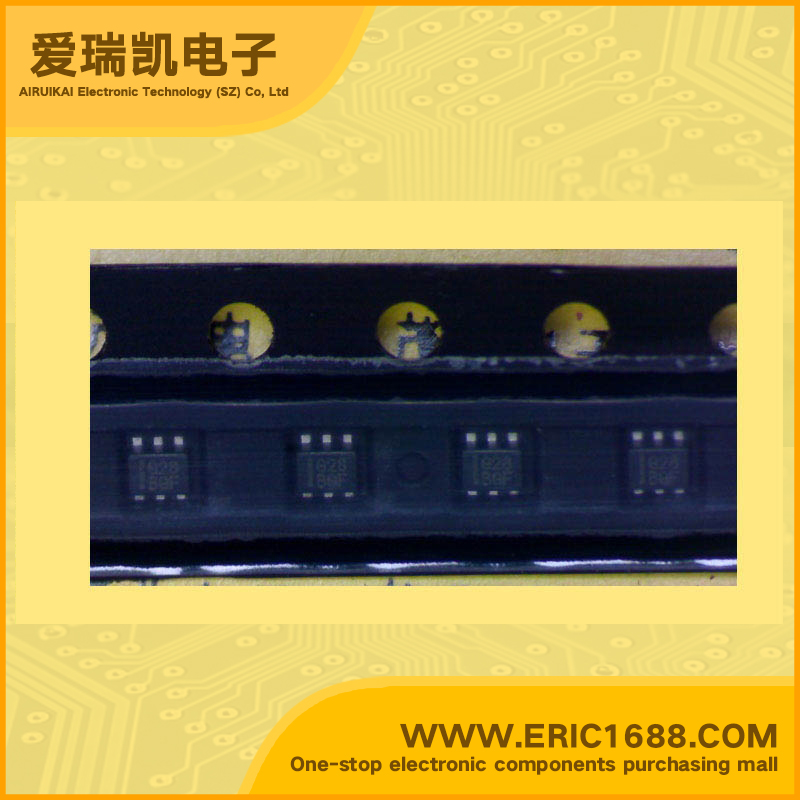

R1180D281B-TR-FA LDO Voltage Regulator 2.8V 250mV/0.25V With Enable Pin SOT-563/SON1612-6 marking G28 Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
1.7V~6V
输出电压VOUT
Voltage - Output
2.8V
输出电流Io
Current - Output
150mA/0.15A
最大压降VDO
Voltage - Dropout
250mV/0.25V
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
有 Yes
最大耗散功率Pd
Power dissipation
500mW/0.5W
Description & Applications150mA LDO REGULATOR ;•Low Supply Current Typ. 1µA(Except the current through CE pull-down circuit) • Standby Mode .Typ. 0.1µA • Low Dropout VoltageTyp. 0.25V (IOUT=150mA 3.0V Output type) • Low Temperature-Drift Coefficient of Output Voltage Typ. ±100ppm/°C • Good Line Regulation Typ. 0.05%/V • High Output Voltage Accuracy ±2.0% • Output Voltage 1.2V to 3.6V • Built-in Fold Back Protection Circuit Typ. 40mA (Current at short mode) • Ceramic capacitors are recommended to be used with this IC 0.1µF • Stable voltage reference. • Power source for electrical appliances such as cameras, VCRs and camcorders. • Power source for battery-powered equipment.
描述与应用150MA LDO稳压器;•低电源电流典型。 1μA(除电流通过CE下拉电路) •待机模式典型。 0.1μA 低降VoltageTyp。 0.25V(IOUT=150MA3.0V输出类型) •低温度漂移系数的输出电压典型值。温度系数±100ppm/°C 线路调整好典型。 0.05%/ V •高输出电压精度±2.0% •输出电压1.2V至3.6V •内置折返保护电路的典型。 40mA(附加电流在很短的模式) •建议使用此IC0.1μF陶瓷电容器 •稳定的参考电压。 •电源的电器,如摄像机,录像机和摄像机。 •电池供电设备的电源。
