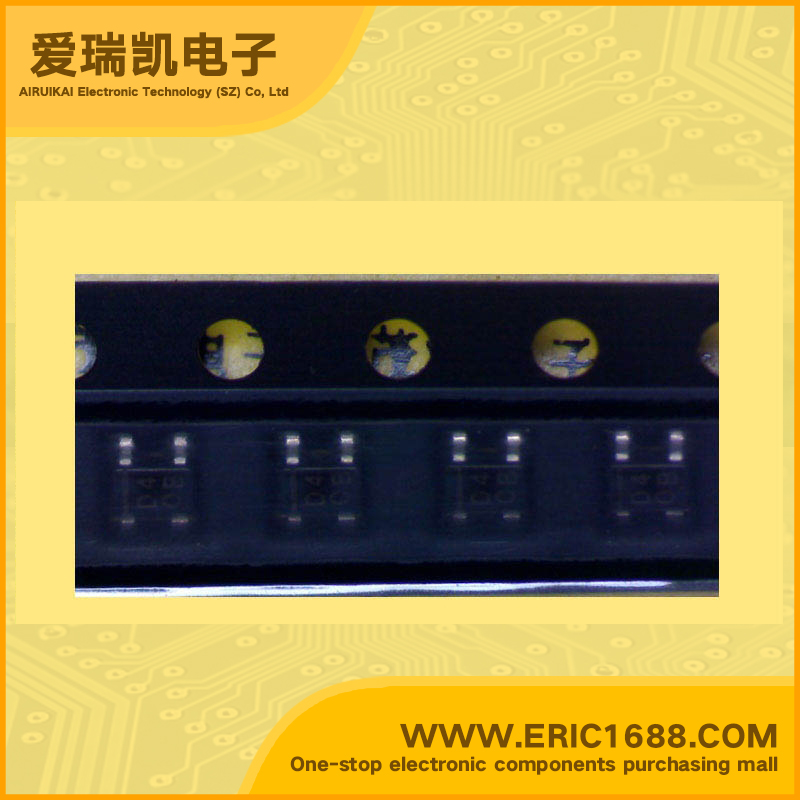

R1180Q141C-TR-FA LDO Voltage Regulator 1.4V 650mV/0.65V With Enable Pin SOT-343/SC-82 marking D4 Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 6.5V |
| 输出电压VOUT Voltage - Output | 1.4V |
| 输出电流Io Current - Output | 150mA/0.15A |
| 最大压降VDO Voltage - Dropout | 650mV/0.65V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 有 Yes |
| 最大耗散功率Pd Power dissipation | 380mW/0.38W |
| Description & Applications | 150mA LDO REGULATOR ;•Low Supply Current Typ. 1µA(Except the current through CE pull-down circuit) • Standby Mode .Typ. 0.1µA • Low Dropout VoltageTyp. 0.25V (IOUT=150mA 3.0V Output type) • Low Temperature-Drift Coefficient of Output Voltage Typ. ±100ppm/°C • Good Line Regulation Typ. 0.05%/V • High Output Voltage Accuracy ±2.0% • Output Voltage 1.2V to 3.6V • Built-in Fold Back Protection Circuit Typ. 40mA (Current at short mode) • Ceramic capacitors are recommended to be used with this IC 0.1µF • Stable voltage reference. • Power source for electrical appliances such as cameras, VCRs and camcorders. • Power source for battery-powered equipment. |
| 描述与应用 | 150MA LDO稳压器;•低电源电流典型。 1μA（除电流通过CE下拉电路） •待机模式典型。 0.1μA 低降VoltageTyp。 0.25V（IOUT=150MA3.0V输出类型） •低温度漂移系数的输出电压典型值。温度系数±100ppm/°C 线路调整好典型。 0.05％/ V •高输出电压精度±2.0％ •输出电压1.2V至3.6V •内置折返保护电路的典型。 40mA（附加电流在很短的模式） •建议使用此IC0.1μF陶瓷电容器 •稳定的参考电压。 •电源的电器，如摄像机，录像机和摄像机。 •电池供电设备的电源。 |
