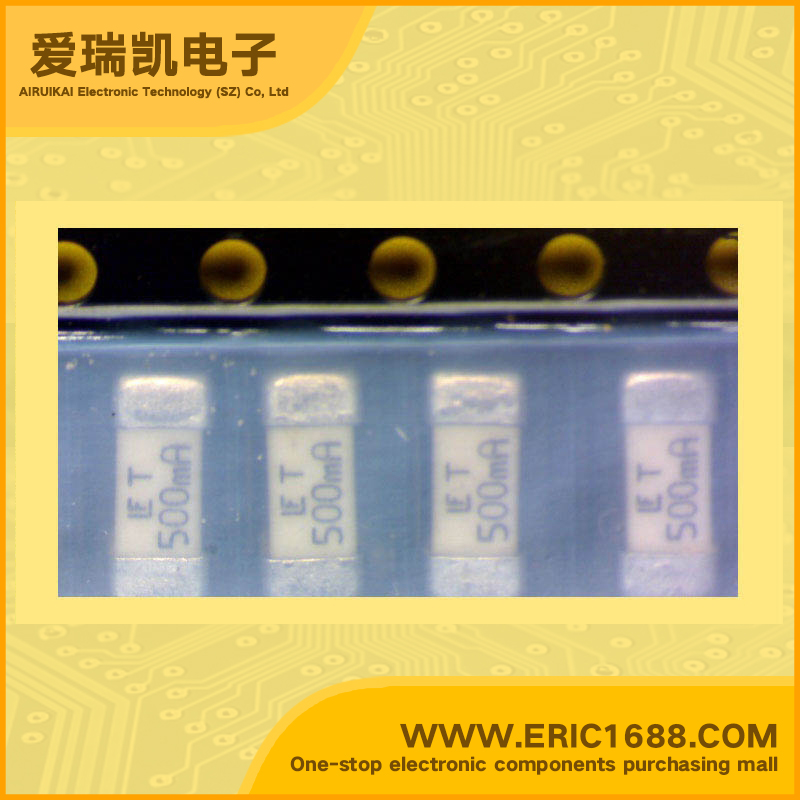

Slow Blow Acting fuse R452.500 500mA/0.5A 125V 1808-500MA marking 500MA
| 额定电流 Current Rating | 500mA/0.5A |
| 额定电压AC Voltage Rating - AC | 125V |
| 额定电压DC Voltage Rating - DC | 125V |
| 分断能力 Interrupting Rating | 50A |
| 熔断积分I2T (A2sec) Melting I²t | 0.24 |
| Description & Applications | Surface Mount Fuses NANO2®Slo-Blo® Fuse 452/454 Series The NANO2 Slo-Blo fuse has enhanced inrush withstand characteristics over the NANO2 Fast-Acting fuse. The unique time delay feature of this fuse design helps solve the problem of nuisance “opening” by accommodating inrush currents that normally cause a fast-acting fuse to open. Solderability: MIL-STD-202, Method 208. PACKAGING SPECIFICATIONS: 12mm Tape and Reel per EIARS481-1 (IEC 286, part 3); 1,000 per reel; 5,000 piece reel also available. Marking: The 452/454 series Slo-Blo fuse marking includes the letter “T” to designate time delay characteristics. |
| 描述与应用 | 表面贴装保险丝 NANO2®SLO-BLO®保险丝452/454系列 NANO2 SLO-BLO保险丝增强浪涌耐压特性 在NANO2 快熔保险丝。的唯一的时间延迟的特点，这 保险丝设计有助于解决通过容纳浪涌电流通常会引起快速熔断器打开的滋扰“开放”问题。 可焊性：MIL-STD-202方法208 包装规格：12mm磁带和卷轴每EIARS481-1（IEC 286，第3部分）;1000每卷5,000片卷轴也可以。 标记：452/454系列SLO-BLO保险丝标记包括信 “T”指定时间延迟特性。 |
