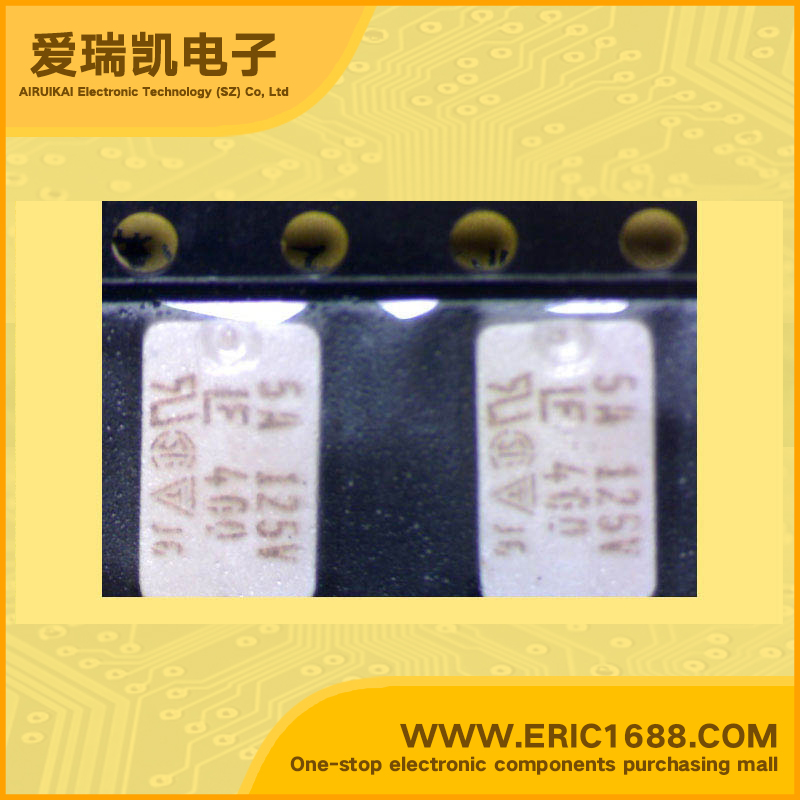

Slow Blow Acting fuse R460005 5A 125V 2512-5A marking 5A

Hot selling goods

Product description
额定电流
Current Rating
5A
额定电压AC
Voltage Rating - AC
125V
额定电压DC
Voltage Rating - DC
125V
分断能力
Interrupting Rating
50A
熔断积分I2T (A2sec)
Melting I²t
54.8
Description & ApplicationsSUBMINIATURE SURFACE MOUNT PICO® SMF Slo-Blo® Type Fuse 460 Series The PICO®SMF Slo-Blo® Fuse product provides Pico®fuse reliability and performance in a standard rectangular surface mount package. Vibration: MIL-STD-202, Method 201 (10–55 Hz, .06 in. total excursion). Salt Spray: MIL-STD-202, Method 101, Test Condition B (48 hrs.). Insulation Resistance (After Opening): MIL-STD-202, Method 302, Test Condition A, (10,000 ohms minimum). Resistance to Soldering Heat: MIL-STD-202, Method 210, (3 sec. at 260°C). Thermal Shock: MIL-STD-202, Method 107, Test Condition B (–65 to 125°C). Moisture Resistance: MIL-STD-202, Method 106, High Humidity (90-98 RH), Heat (65°C). PHYSICAL SPECIFICATIONS: Materials: Body: Ceramic Terminations: Tin-Lead Alloy or Silver Plated Brass Caps. Soldering Parameters: Wave Solder — 260°C, 3 seconds maximum Reflow Solder — 230°C, 30 seconds maximum Solderability: MIL-STD-202, Method 208.
描述与应用超小型表面贴装 PICO®SMF SLO-BLO®类型保险丝460系列 PICO®SMF SLO-BLO®保险丝产品提供的Pico®保险丝 在一个标准的矩形表面贴装封装的可靠性和性能。 振动:MIL-STD-202方法201(10-55赫兹,.06英寸总偏移)。 盐雾:MIL-STD-202方法101,测试条件B(48小时)。 绝缘电阻(开封后):MIL-STD-202, 方法302,测试条件A,(10,000欧姆最小)。 耐焊接热:MIL-STD-202,方法210, (3秒,在260℃)。 热冲击:MIL-STD-202方法107, 测试条件B(-65到125°C)。 防潮性:MIL-STD-202,方法106, 高湿度(90-98 RH),热(65°C)。 物理规格: 材料:本体:陶瓷 终端:锡铅合金或银 镀黄铜上限。 焊接参数: 波峰焊 - 260°C,最大3秒 回流焊接 - 230°C,30秒最大 可焊性:MIL-STD-202方法208
