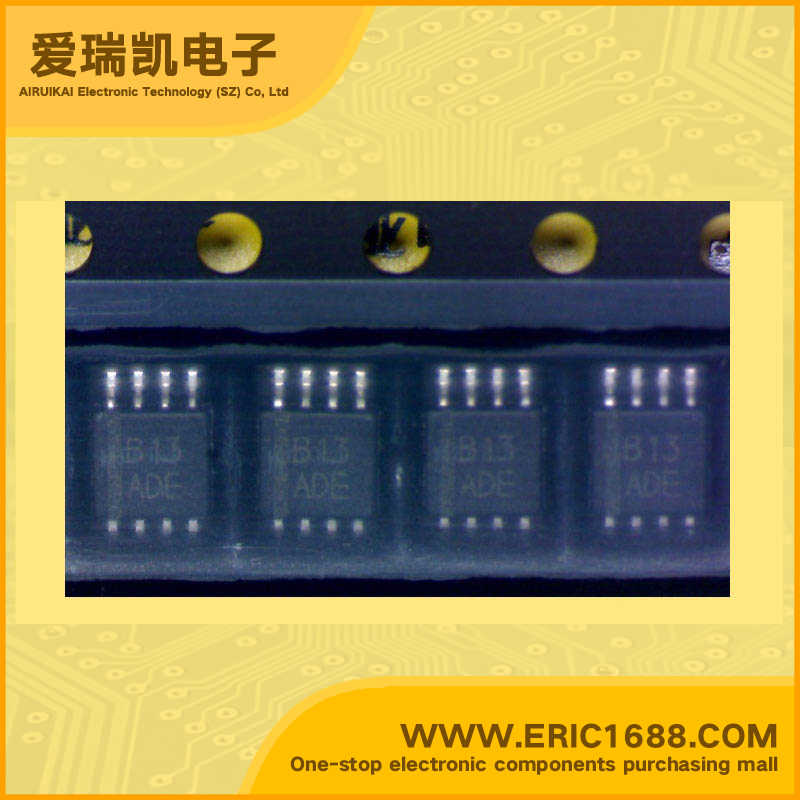

R5320G013A LDO Voltage Regulator 2~5V With Enable Pin SSOP8G marking B13A Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 3 |
| 输入电压VIN Voltage - Input | 7V |
| 输出电压VOUT Voltage - Output | 2~5V |
| 输出电流Io Current - Output | 80mA |
| 最大压降VDO Voltage - Dropout | |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 有 Yes |
| 最大耗散功率Pd Power dissipation | 300mW/0.3W |
| Description & Applications | CMOS Multi-LDOs for RF Unit ;•Ultra-Low Supply CurrentTYP. 70µA:VR1, TYP. 70µA:VR2, TYP. 70µA:VR3 • Low Standby Current TYP. 0.1µA:VR1, TYP. 0.1µA:VR2, TYP. 0.1µA:VR3 • Low Dropout Voltage TYP. 0.22V (VR1) 0.16V (VR2,VR3) •OUT=150mA:VR1,80mA:VR2,VR3 (ex. for 3.0V Output Type) •High Ripple Rejection .TYP.70dB (f=1kHz) •High Output Voltage Accuracy±2.0% •Excellent Load Transient Response and Line Transient Response •Small Package 8-Pin SSOP (0.65mm pitch) • Input Voltage Max. 6V •Power source for cellular phones such as GSM,CDMA and Personal Handy-phone System. •Power source for electrical appliances such as cameras, VCRs, camcorders, etc. •Power source for battery-powered equipment. |
| 描述与应用 | CMOS LDO的射频单元多;•超低电源CurrentTYP的。 70μA：VR1，TYP。 70μA：VR2，TYP。 70μA：VR3 •低待机电流典型值。 0.1μA：VR1，TYP。 0.1μA：VR2，TYP。 0.1μA：VR3 •低压差TYP。 0.22V（VR1）0.16V（VR2，VR3） •OUT=150毫安：VR1，80毫安：VR2，VR3（例如3.0V输出类型） •高纹波抑制。TYP.70dB（F =1kHz时） •高输出电压精度±2.0％ •出色的负载瞬态响应和线路瞬态响应 •小包装8-Pin SSOP（0.65mm间距） •输入电压马克斯。 6V •电源蜂窝电话如GSM，CDMA和个人手持电话系统。 •如照相机，录像机，摄像机等电器的电源 •电池供电设备的电源。 |
