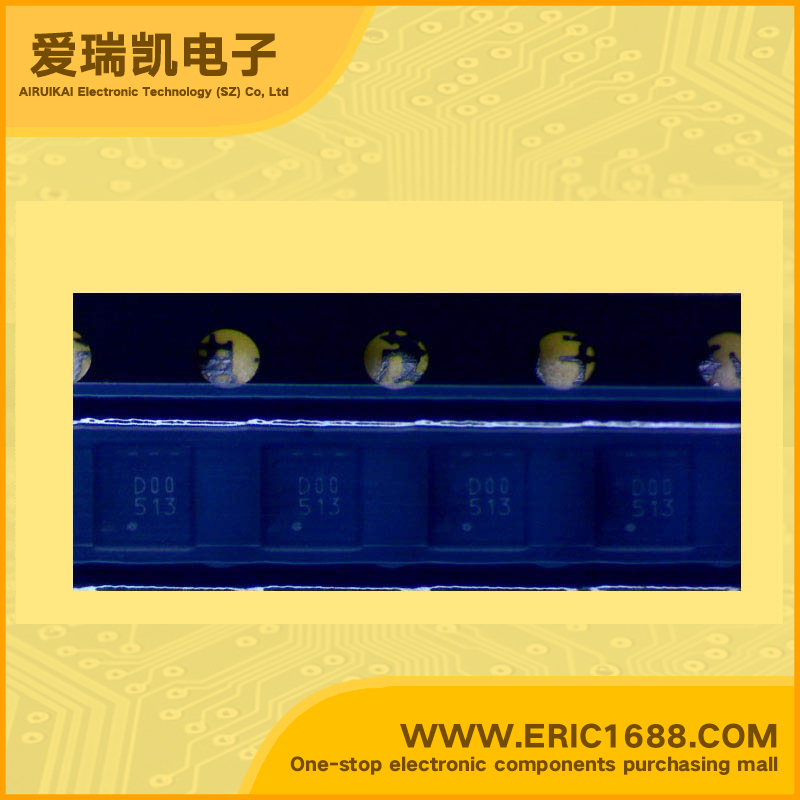

R5325K005B LDO Voltage Regulator 1.2V至4.0V ONWith Enable Pin PLP1820-6 marking DOO Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | |
| 输入电压VIN Voltage - Input | 1.5V至6.0V |
| 输出电压VOUT Voltage - Output | 1.2V至4.0V |
| 输出电流Io Current - Output | 200mA/0.2A |
| 最大压降VDO Voltage - Dropout | |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 无 No |
| 最大耗散功率Pd Power dissipation | 880mW/0.88W |
| Description & Applications | 150mA 2ch LDO REGULATOR ;FEATURES • 150mA 2ch LDO REGULATOR • Input Voltage:1.5V to 6.0V • Output Voltage:1.2V to 4.0V • High Output Voltage Accuracy±1.0% (VOUT => 1.5V) • Low Supply Current Typ. 3.0μA (VR1, VR2) • Standby Current Typ. 0.1μA (VR1,VR2) • Low Dropout Voltage.Typ. 0.2V (IOUT=150mA ,VOUT=3.0V) • High Ripple Rejection Typ. 55dB (f=1kHz) • Built-in fold-back protection circuit Typ. 50mA (Current at short mode) • Low Temperature-Drift Coefficient of Output Voltage....Typ. ±100ppm/°C • Excellent Line Regulation Typ.0.02%/V • Built-in chip enable circuit (active “H”) • Fast Transient Response Time from large load current to small load current (50% less than R5323x) • Small Packages SOT-23-6, PLP1820-6 • Ceramic Capacitor is recommended. (0.1μF or more) APPLICATIONS • Power source for handheld communication equipment. • Power source for electrical appliances such as cameras, VCRs and camcorders. • Power source for battery-powered equipment. |
| 描述与应用 | 双声道150MA LDO稳压器;特点 •150毫安2ch的LDO稳压器的 •输入电压:1.5V至6.0V •输出电压:1.2V至4.0V •高输出电压精度:±1.0％（VOUT=> 1.5V） •低电源电流典型。 3.0μA（VR1，VR2） •待机电流典型。 0.1μA（VR1，VR2） •低压差电压典型。 0.2V（IOUT=的150mA，VOUT= 3.0V） •高纹波抑制典型。 55分贝（F =1kHz时） •内置折返保护电路典型。电流50mA（目前在很短的模式） •低输出电压温度漂移典型。温度系数±100ppm/°C •卓越的线路调整.典型.0.02％/ V •内置芯片使能电路（动态“H”） •快速瞬态响应时间从大负载电流负载电流小（小于50％R5323x） •小型封装，PLP1820 SOT-23-6-6 •陶瓷电容器建议。 （0.1μF或更大） 应用 •手持通信设备的电源。 •电源的电器，如摄像机，录像机和摄像机。 •电池供电设备的电源。 |
