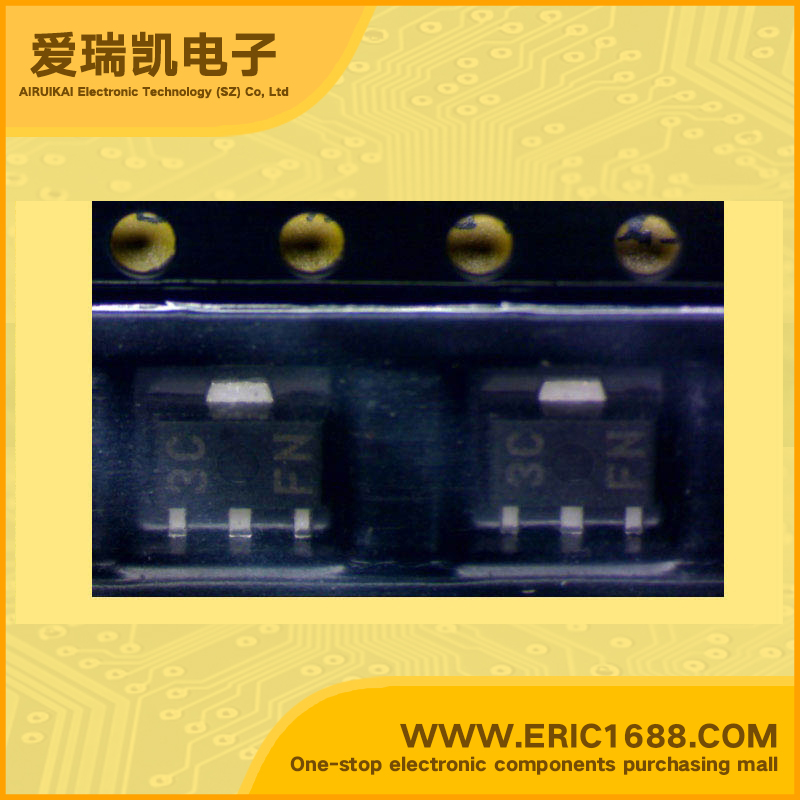

RH5RL33AA LDO Voltage Regulator 3.3V 60mV SOT-89 marking 3C Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 12V |
| 输出电压VOUT Voltage - Output | 3.3V |
| 输出电流Io Current - Output | 1mA |
| 最大压降VDO Voltage - Dropout | 60mV |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 无 No |
| 最大耗散功率Pd Power dissipation | 300mW/0.3W |
| Description & Applications | VOLTAGE REGULATOR ;•Ultra-low Quiescent Current TYP. 1.1µA (R×5RL30A, VIN=5.0V) • Small Dropout Voltage TYP. 30mV (R×5RL50A, IOUT=1mA) • Low Temperature-Drift Coefficient of Output Voltage TYP. ±100 ppm/˚C • Excellent Line Regulation. TYP. 0.1%/V • Output Voltage Stepwise setting with a step of 0.1V in the range of 2.0V to 6.0V is possible (refer to Selection Guide). • High Accuracy Output Voltage ±2.5% • Power source for battery-powered equipment. • Power source for cameras, video instruments such as camcorders, VCRs, and hand- held communication equipment. • Precision voltage references. |
| 描述与应用 | 电压调节器;•超低静态电流典型值。 1.1μA（R×5RL30A，VIN=5.0V） •小降电压TYP。 30mV的（R×5RL50A，IOUT=1毫安） •低温度漂移系数的输出电压典型值。 ±100 PPM /˚C •卓越的线路调整。 TYP。 0.1％/ V •输出电压每步0.1V，在2.0V至6.0V的范围内逐步设置 （参见选型指南）。 •高输出电压精度为±2.5％ •电池供电设备的电源。 •电源的摄像机，摄录一体机，录像机和手持通信设备，如视频工具。 •精密电压基准。 |
