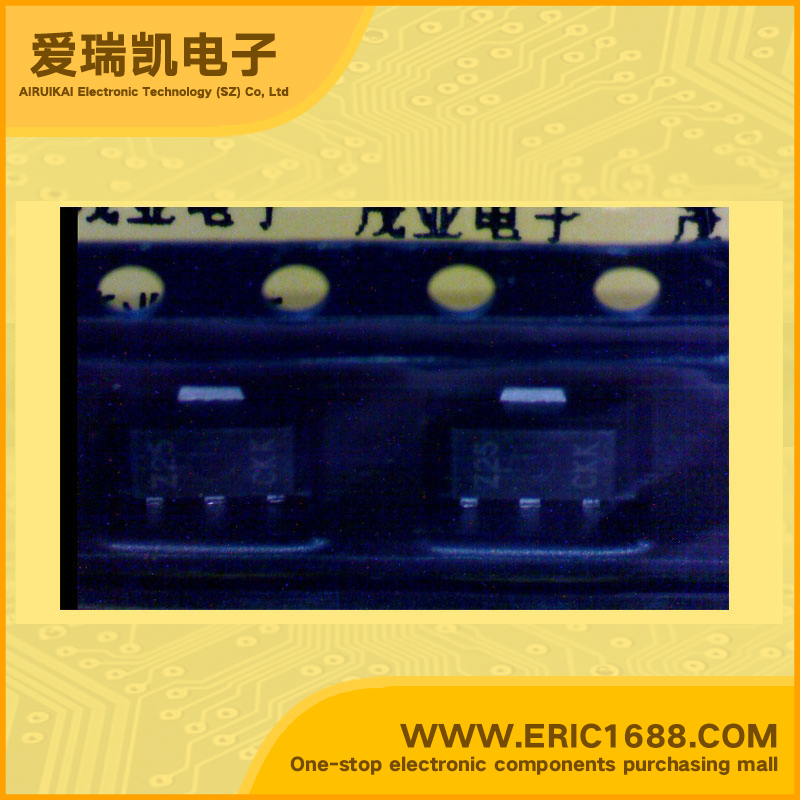

RH5RZ25CA Voltage Regulator 2.5V With Enable Pin SOT-89 marking Z25 Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | |
| 输入电压VIN Voltage - Input | 8V |
| 输出电压VOUT Voltage - Output | 2.5V |
| 输出电流Io Current - Output | 100mA/0.1A |
| 最大压降VDO Voltage - Dropout | |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | |
| 最大耗散功率Pd Power dissipation | 900mW/0.9W |
| Description & Applications | LOW DROPOUT AND LOW NOISE VOLTAGE REGULATOR ;FEATURES • LOW DROPOUT AND LOW NOISE VOLTAGE REGULATOR • Supply Current Typ. 20μA • Supply Current (Standby) Typ. 0.1μA • Output Voltage Accuracy ±2% • Ripple Rejection Typ. 55dB (f=1kHz) • Dropout Voltage Typ. 0.2V (IOUT=60mA) • Temperature-Drift Coefficient of Output Voltage Typ. ± 100ppm/°C • Line Regulation .Typ. 0.05%/V • Output Voltage Range 2.0V to 6.0V (0.1V steps) (For other voltages, please refer to MARK INFORMATIONS.) • Packages SOT-23-5 (Mini-mold), SOT-89 (Mini-power Mold) • Built-in Fold-Back Protection Circuit Current limit Typ. 50mA APPLICATIONS • Power source for battery-powered equipment • Power source for hand-held communication equipment, cameras, and VCRs • Power source for home appliances |
| 描述与应用 | 低漏失和低噪声电压调节器;特点 •低压差和低噪声电压稳压器 •供电电流典型。 20μA •电源电流（待机）典型。 0.1μA •输出电压精度±2％ •纹波抑制典型。 55分贝（F =1kHz时） •漏失电压典型值。 0.2V（IOUT60毫安） •典型输出电压的温度漂移系数。温度系数±100ppm/°C •线路调整典型。 0.05％/ V •输出电压范围2.0V至6.0V（0.1V步） （对于其他电压，请参阅标记信息。） •封装SOT-23-5（迷你模），SOT-89（小功率模具） •内置保护电路的电流折返限制典型。 50毫安 应用 •电源为电池供电设备 •手持式通信设备，照相机，录像机的电源 •电源家电 |
