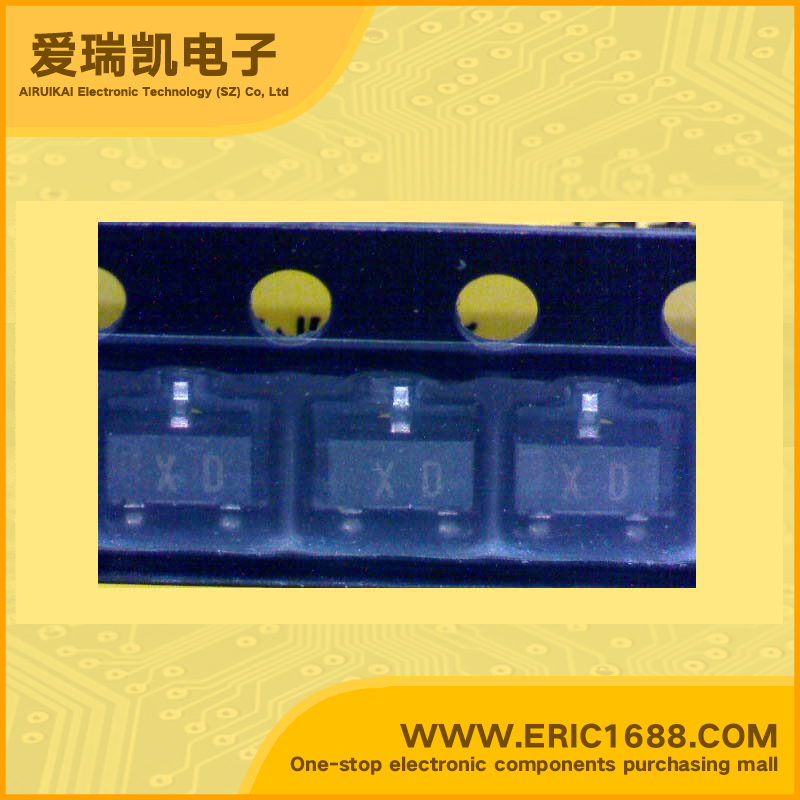

RN1404 NPN Bipolar Digital Transistor (BRT) 50V 100mA/0.1A 47k 47k SOT-23/SC-59/S-Mini marking XD switch inverting circuit interface circuit and driver circuit
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 50V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 50V |
| 集电极连续输出电流IC Collector Current(IC) | 100mA/0.1A |
| 基极输入电阻R1 Input Resistance(R1) | 47KΩ/Ohm |
| 基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | 47KΩ/Ohm |
| 电阻比(R1/R2) Resistance Ratio | 1 |
| 直流电流增益hFE DC Current Gain(hFE) | 80 |
| 截止频率fT Transtion Frequency(fT) | 250MHz |
| 耗散功率Pc Power Dissipation | 0.2W/200mW |
| Description & Applications | Switching, Inverter Circuit, Interface Circuit And Driver Circuit Applications With built-in bias resistors Simplified circuit design Reduce a quantity of parts and manufacturing process Complementary to RN2401~RN2406 |
| 描述与应用 | 开关，逆变电路，接口电路 和驱动器电路应用 借助内置的偏置电阻 简化电路设计 数量减少了零件和制造工艺 补充到RN2401~~ RN2406 |
