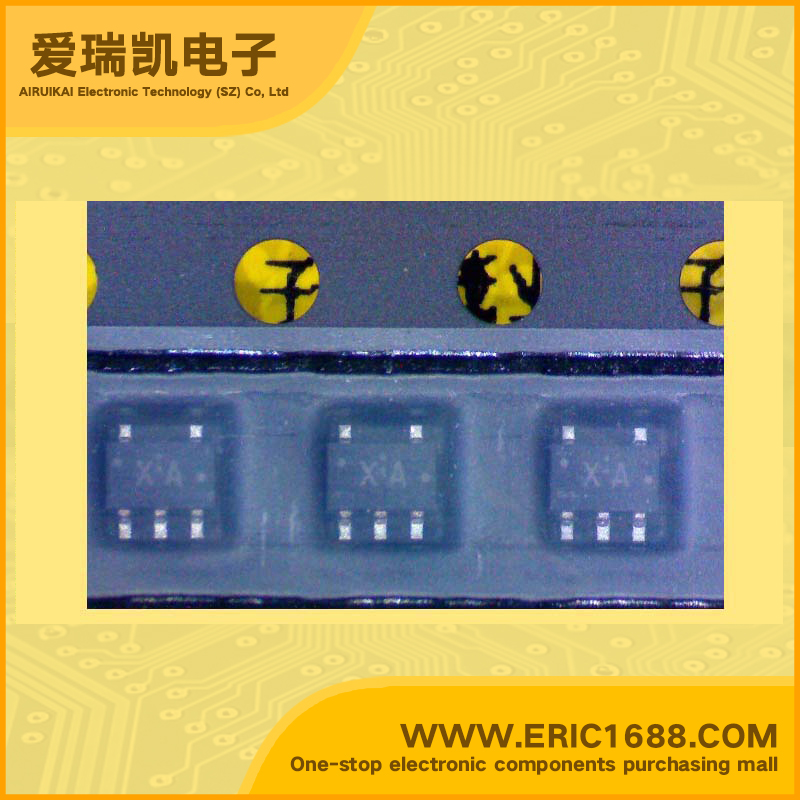

RN1701 NPN+NPN Complex Bipolar Digital Transistor 50V 100mA 30 200mW/0.2W SOT-353/usv/SC70-5 marking XA switching inverting interface driver circuit
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 50V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 50V |
| 集电极连续输出电流IC Collector Current(IC) | 100mA |
| Q1基极输入电阻R1 Input Resistance(R1) | 4.7KΩ/Ohm |
| Q1基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | 4.7KΩ/Ohm |
| Q1电阻比(R1/R2) Q1 Resistance Ratio | 1 |
| Q2基极输入电阻R1 Input Resistance(R1) | 4.7KΩ/Ohm |
| Q2基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | 4.7KΩ/Ohm |
| Q2电阻比(R1/R2) Q2 Resistance Ratio | 1 |
| 直流电流增益hFE DC Current Gain(hFE) | 30 |
| 截止频率fT Transtion Frequency(fT) | 250MHz |
| 耗散功率Pc Power Dissipation | 200mW/0.2W |
| Description & Applications | Features • TOSHIBA Transistor Silicon NPN Epitaxial Type (PCT Process) • Including two devices in USV (ultra super mini type with 5 leads) • With built-in bias resistors • Simplified circuit design • Reduced number of parts and manufacturing process • Complementary to RN2701 to RN2706 APPLICATIONS • Switching, Inverter Circuit, Interface Circuit and Driver Circuit Applications |
| 描述与应用 | 特点 •东芝晶体管的硅NPN外延型（PCT工艺）包括两个设备USV（超超级迷你型5脚） •借助内置的偏置电阻 •简化电路设计 •数量减少零部件和制造工艺 •互补RN2701 RN2706 应用 •开关，逆变电路，接口电路和驱动器电路应用 |
