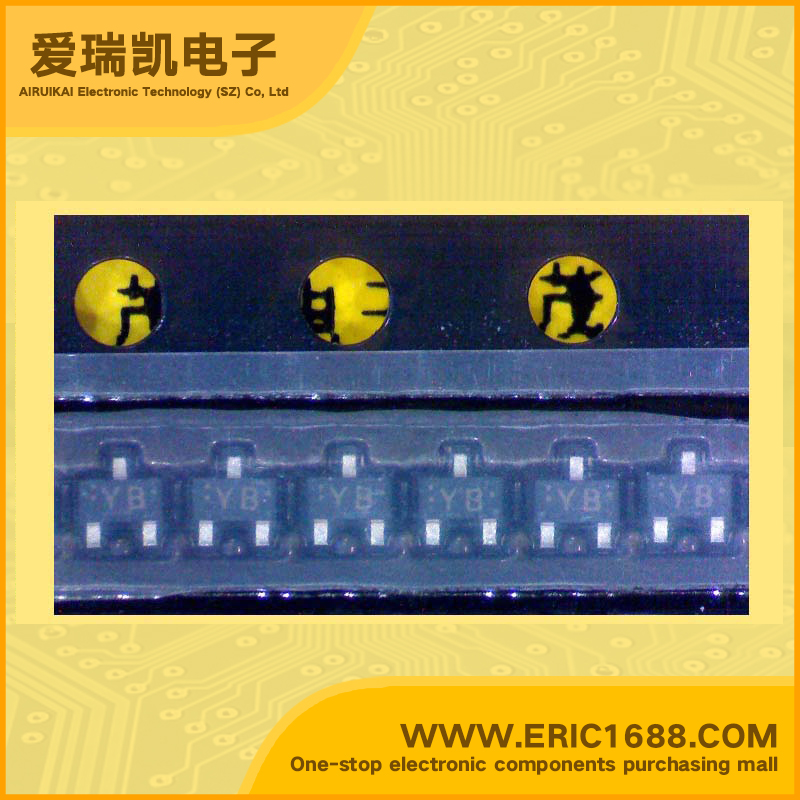

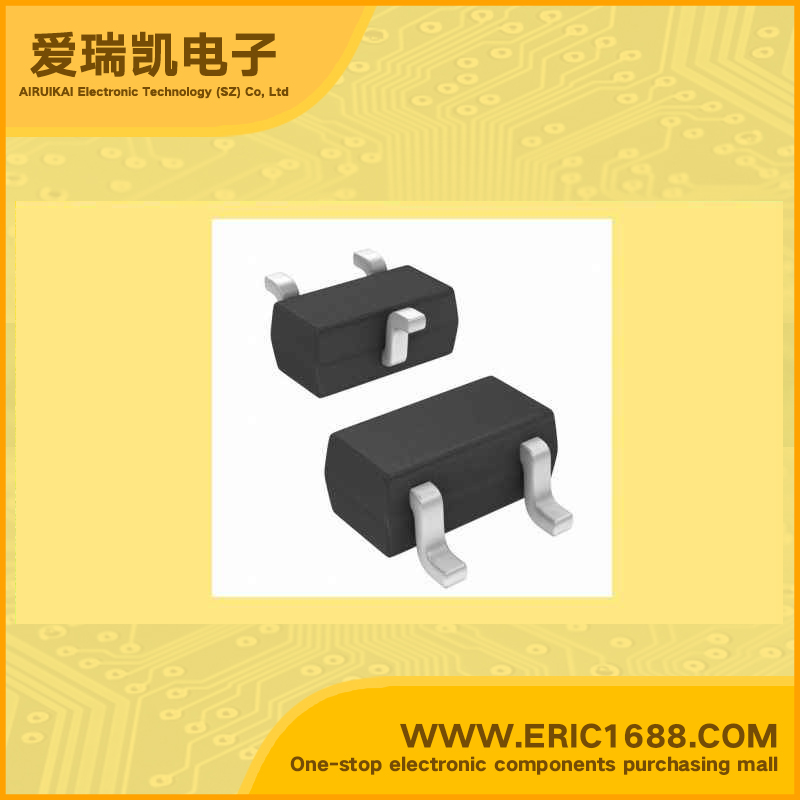

RN2102F PNP Bipolar Digital Transistor (BRT) -50V -100mA/-0.1A 50 0.1W/100mW SOT-523/ESM marking YB switch inverter interface driver circuit
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | -50V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | -50V |
| 集电极连续输出电流IC Collector Current(IC) | -100mA/-0.1A |
| 基极输入电阻R1 Input Resistance(R1) | 10KΩ/Ohm |
| 基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | 10KΩ/Ohm |
| 电阻比(R1/R2) Resistance Ratio | 1 |
| 直流电流增益hFE DC Current Gain(hFE) | 50 |
| 截止频率fT Transtion Frequency(fT) | 200MHz |
| 耗散功率Pc Power Dissipation | 0.1W/100mW |
| Description & Applications | Features • Transistor Silicon PNP Epitaxial Type (PCT Process) • With built-in bias resistors • Simplify circuit design • Reduce a quantity of parts and manufacturing process • Complementary to RN1101F~RN1106F Applications • Switching, Inverter Circuit, Interface Circuit and Driver Circuit Applications |
| 描述与应用 | 特点 •晶体管的硅PNP外延型（PCT工艺） •借助内置的偏置电阻 •简化电路设计 •减少了部件数量和制造工艺 •互补到RN1101F〜RN1106F的 应用 •开关，逆变电路，接口电路和驱动器电路应用 |
