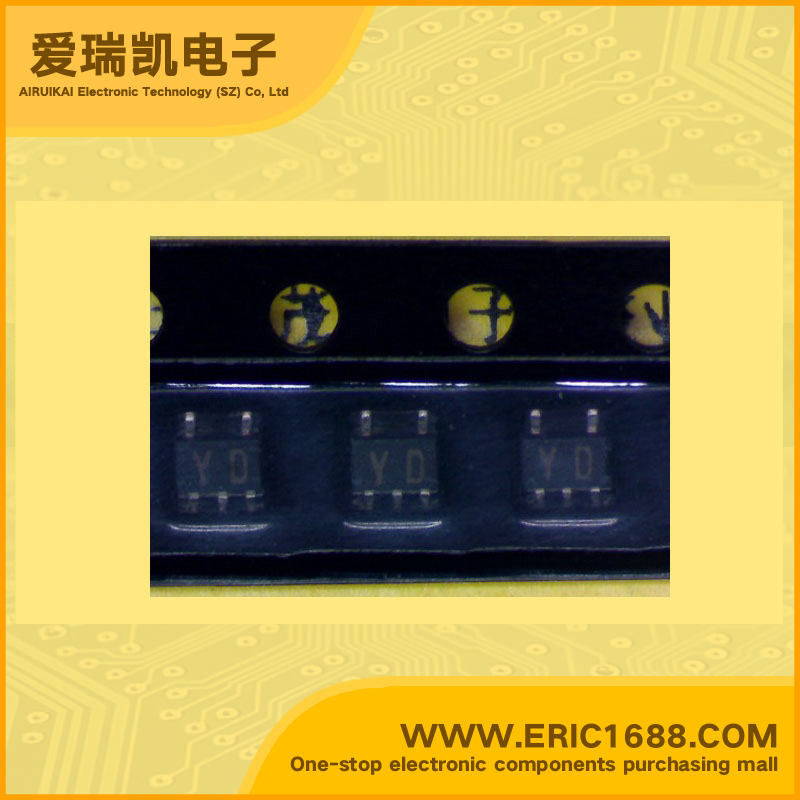

RN2704 PNP+PNP Complex Bipolar Digital Transistor -50V -100mA HEF=80 R1=R2=47KΩ 200mW/0.2W SOT-353/usv/SC70-5 marking YD switching inverting interface driver circuit

Hot selling goods

Product description


Collector-Base Voltage



Collector-Emitter Voltage

Collector Current(IC)  -100MA/-0.1A
 Input Resistance(R1)  47KΩ
Base-Emitter Resistance(R2) 47 KΩ
Base-Emitter Input Resistance Ratio (R1/R2)  1
DC Current Gain(hFE)  80
Transtion Frequency(fT)  200MHZ
Power Dissipation (Pd)  0.2W
Description & Applications  Switching, Inverter Circuit, Interface Circuit
And Driver Circuit Applications
Including two devices in USV (ultra super mini type with 5 leads)
With built-in bias resistors
Simplify circuit design
Reduce a quantity of parts and manufacturing process
