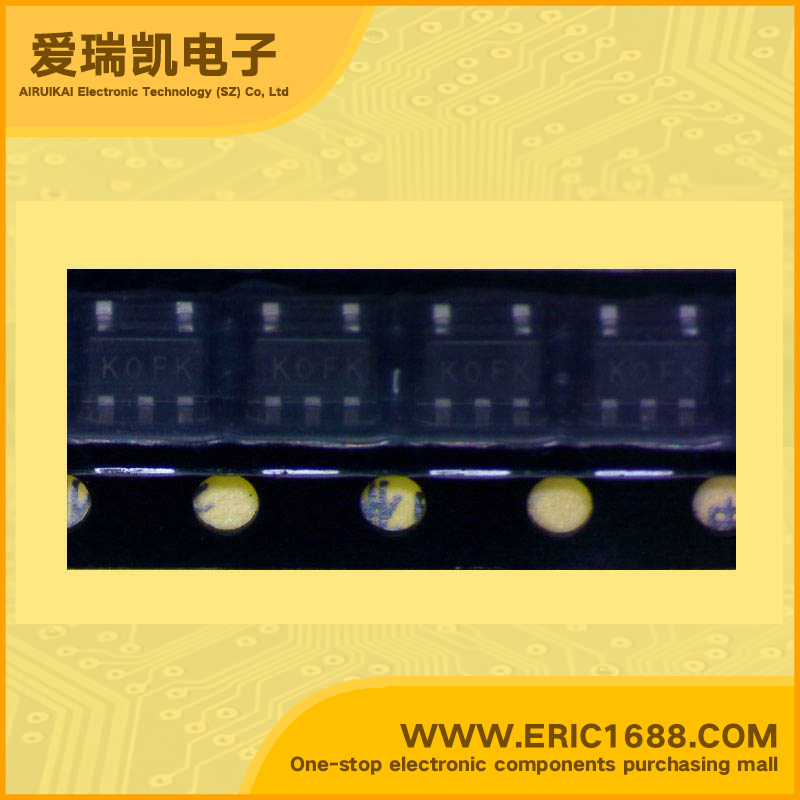

RN5RG30AA LDO Voltage Regulator 3V 100mV/0.1V With Enable Pin SOT-153/SOT23-5 marking K0 Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 12V |
| 输出电压VOUT Voltage - Output | 3V |
| 输出电流Io Current - Output | 100mA/0.1A |
| 最大压降VDO Voltage - Dropout | 100mV/0.1V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 有 Yes |
| 最大耗散功率Pd Power dissipation | 150mW/0.15W |
| Description & Applications | VOLTAGE REGULATOR WITH EXTERNAL POWER TRANSISTOR ;•Ultra-Low Supply Current TYP. 50µA • Standby Mode TYP. 0.2µA • Ultra-Low Dropout Voltage TYP. 0.1V (IOUT=100mA : dependent on External Tr.) • Low Temperature-Drift Coefficient of Output Voltage TYP. ±100 ppm/˚C • Excellent Line Regulation TYP. 0.1%/V • Output Voltage Stepwise setting with a step of 0.1V in the range of 2.0V to 6.0V is possible (refer to Selection Guide). • High Accuracy Output Voltage ±2.5% • Power source for battery-powered equipment. • Power source for cameras, VCRs, camcorders, hand-held audio instruments, and hand-held communication equipment. • Power source for domestic appliances. |
| 描述与应用 | 稳压器与 外部功率晶体管;•超低电源电流的典型值。 50μA •待机模式TYP。 0.2μA •超低压差电压TYP。 0.1V（IOUT=100MA：依赖于外部TR）。 •低输出电压的温度漂移 TYP。 ±100 PPM /˚C •卓越的线路调整TYP。 0.1％/ V •输出电压范围为2.0V至6.0V0.1V的步骤逐步设置 （参见选型指南）。 •高输出电压精度为±2.5％ •电池供电设备的电源。 •电源，摄像机，录像机，摄像机，手持音频设备和手持式通信 的设备。 •家用电器的电源。 |
