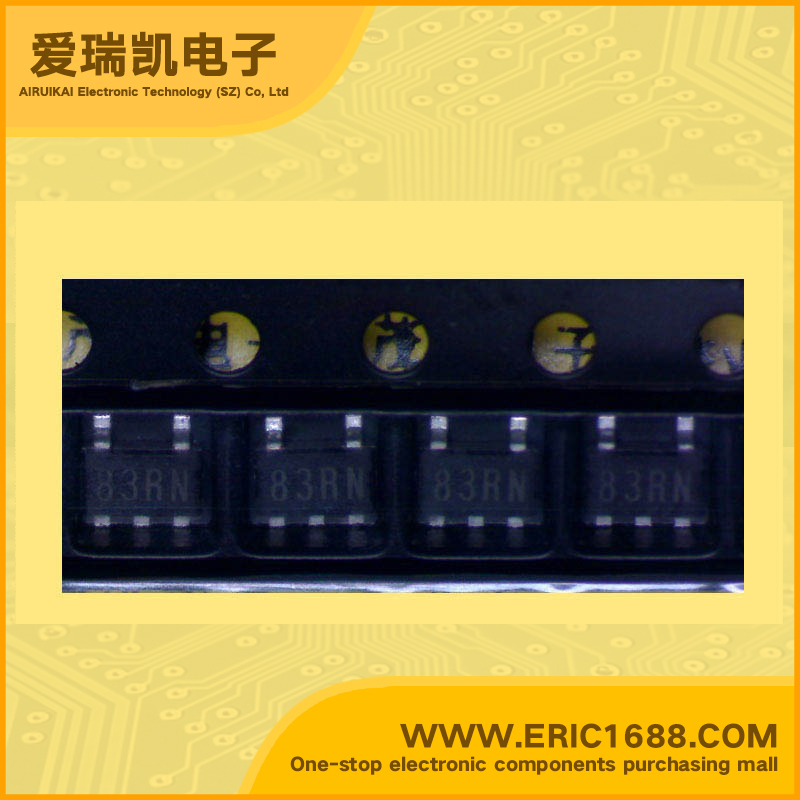

RN5RZ33BA-TR LDO Voltage Regulator 3.3V 200mV/0.2V With Enable Pin SOT-153/SOT23-5 marking 83 Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 9V |
| 输出电压VOUT Voltage - Output | 3.3V |
| 输出电流Io Current - Output | 60mA |
| 最大压降VDO Voltage - Dropout | 200mV/0.2V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 有 Yes |
| 最大耗散功率Pd Power dissipation | 250mW/0.25W |
| Description & Applications | LOW DROP-OUT AND LOW NOISE VOLTAGE REGULATOR ;• Ultra-Low Supply Current TYP. 4µA (except ICEL) • Standby Mode TYP. 0.1µA • Low Dropout Voltage TYP. 0.3V (IOUT=60mA, RN5RT30A) • Low Temperature-Drift Coefficient of Output Voltage TYP. ±100ppm/˚C • Excellent Line Regulation YP. 0.15%/V • Output Voltage Stepwise setting with a step of 0.1V in the range of 2.0V to 6.0V is possible (refer to Selection Guide). • High Accuracy Output Voltage±2.0% • Built-in Current Limit Circuits TYP. 30mA • Power source for battery-powered equipment. • Power source for cellular phones, cameras, VCRs, camcorders, hand-held audio instruments and hand-held communication equipment. • Power source for domestic appliances. |
| 描述与应用 | 低压降和低噪声 电压调节器;•超低电源电流的典型值。 4μA（ICEL除外） •待机模式TYP。 0.1μA •低压差TYP。 0.3V（RN5RT30A IOUT=60毫安） •低温度漂移系数的输出电压典型值。温度系数±100ppm/˚C •卓越的线路调整YP。 0.15％/ V •输出电压每步0.1V，在2.0V至6.0V的范围内逐步设置 （参见选型指南）。 •高输出电压精度±2.0％ •内置电流限制电路TYP。 30毫安 •电池供电设备的电源。 •电源，手机，照相机，录像机，摄像机，手持音频设备和手持式通信设备。 •家用电器的电源。 |
