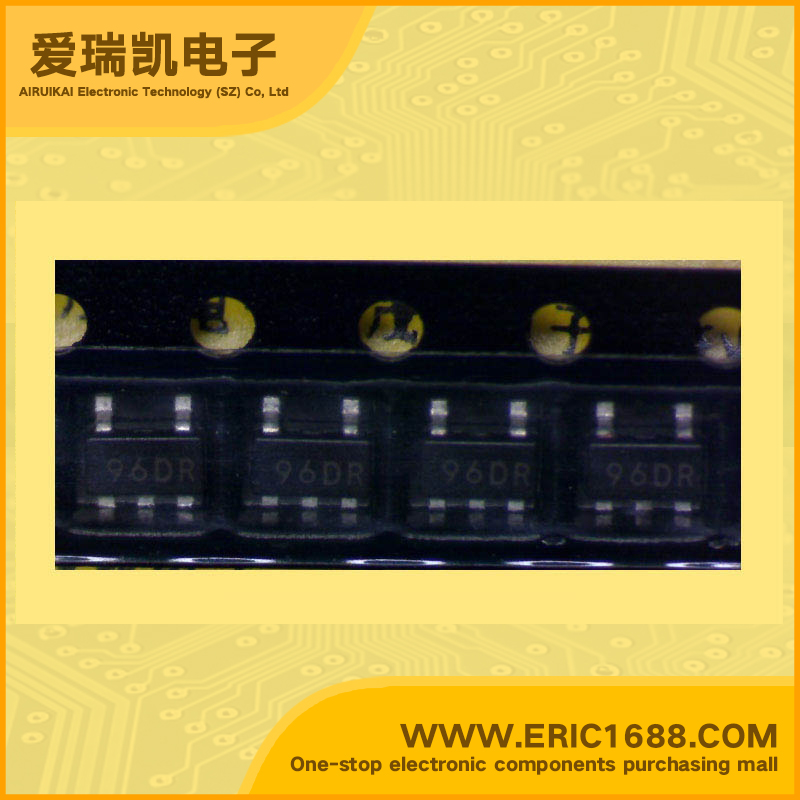

RN5RZ46B LDO Voltage Regulator 4.6V 200mV/0.2V With Enable Pin SOT-153/SOT23-5 marking 96 Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
9V
输出电压VOUT
Voltage - Output
4.6V
输出电流Io
Current - Output
60mA
最大压降VDO
Voltage - Dropout
200mV/0.2V
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
有 Yes
最大耗散功率Pd
Power dissipation
250mW/0.25W
Description & ApplicationsLOW DROP-OUT AND LOW NOISE VOLTAGE REGULATOR ;• Ultra-Low Supply Current TYP. 4µA (except ICEL) • Standby Mode TYP. 0.1µA • Low Dropout Voltage TYP. 0.3V (IOUT=60mA, RN5RT30A) • Low Temperature-Drift Coefficient of Output Voltage TYP. ±100ppm/˚C • Excellent Line Regulation YP. 0.15%/V • Output Voltage Stepwise setting with a step of 0.1V in the range of 2.0V to 6.0V is possible (refer to Selection Guide). • High Accuracy Output Voltage±2.0% • Built-in Current Limit Circuits TYP. 30mA • Power source for battery-powered equipment. • Power source for cellular phones, cameras, VCRs, camcorders, hand-held audio instruments and hand-held communication equipment. • Power source for domestic appliances.
描述与应用低压降和低噪声 电压调节器;•超低电源电流的典型值。 4μA(ICEL除外) •待机模式TYP。 0.1μA •低压差TYP。 0.3V(RN5RT30A IOUT=60毫安) •低温度漂移系数的输出电压典型值。温度系数±100ppm/˚C •卓越的线路调整YP。 0.15%/ V •输出电压每步0.1V,在2.0V至6.0V的范围内逐步设置 (参见选型指南)。 •高输出电压精度±2.0% •内置电流限制电路TYP。 30毫安 •电池供电设备的电源。 •电源,手机,照相机,录像机,摄像机,手持音频设备和手持式通信设备。 •家用电器的电源。
