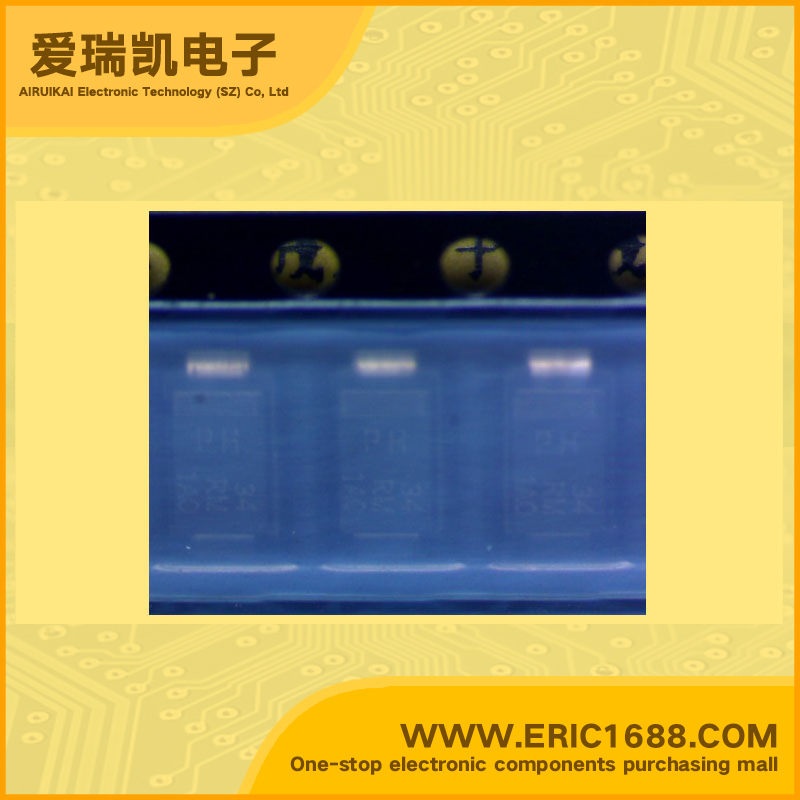

RS1M Fast Recovery Diodes 1000V 1A 1.3V 200nS SMA/DO-214AC marking PH avalanche rectifier/low leakage current
| 反向电压Vr Reverse Voltage | 1000V |
| 平均整流电流Io AverAge Rectified Current | 1A |
| 最大正向电压降VF Forward Voltage(Vf) | 1.3V |
| 反向恢复时间Trr Reverse Recovery Time | 200nS |
| 最大耗散功率Pd Power dissipation | |
| Description & Applications | SMA fast soft-recovery controlled avalanche rectifiers • Glass passivated • High maximum operating temperature • Ideal for surface mount automotive applications • Low leakage current • Excellent stability • Guaranteed avalanche energy absorption capability • UL 94V-O classified plastic package • Shipped in 12 mm embossed tape • Marking: cathode, date code, type code • Easy pick and place |
| 描述与应用 | SMA快速软恢复 控制雪崩整流器 •玻璃钝化 •最高工作温度 •非常适于表面安装汽车应用 •低漏电流 •优良的稳定性 •保证雪崩能量吸收能力 •UL94V-O分类塑料包装 •运12 mm压纹带 •标记：阴极，日期代码，类型代码 •轻松取放 |
