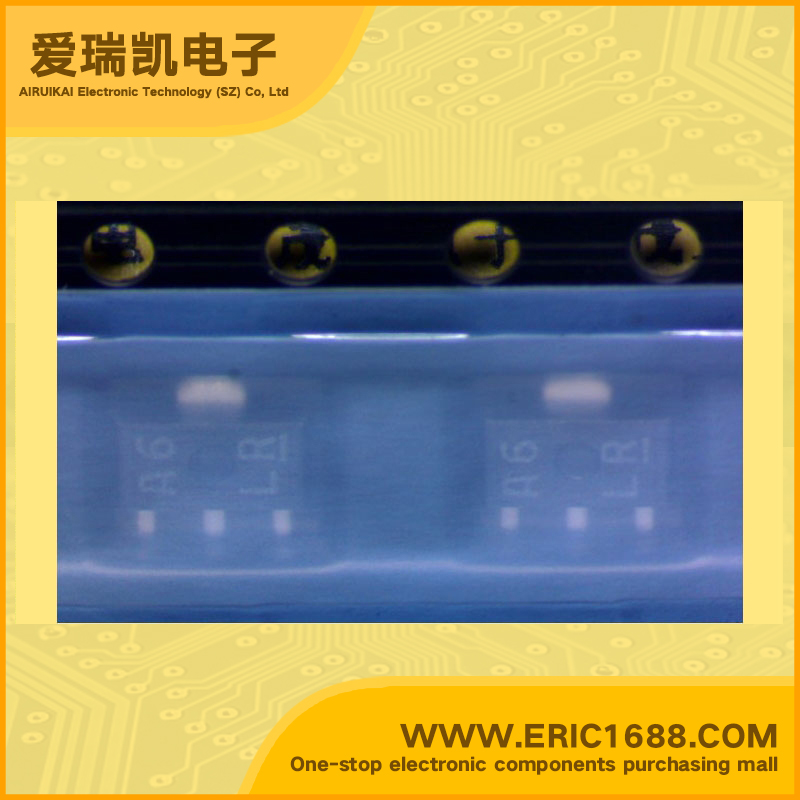

RT9161-39CX LDO Voltage Regulator 3.9V 450mV/0.45V SOT-89 marking A6 Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | -0.3~14V |
| 输出电压VOUT Voltage - Output | 3.9V |
| 输出电流Io Current - Output | 300mA/0.3A |
| 最大压降VDO Voltage - Dropout | 450mV/0.45V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 无 No |
| 最大耗散功率Pd Power dissipation | 500mW/0.5W |
| Description & Applications | 300/500mA Low Dropout Linear Voltage Regulator ;•Low Dropout Voltage of 200mV at Output •Current 100mA, 450mV at Output Current •Guaranteed 300/500mA Output Current • Low Ground Current 110 A • 2% Accuracy Output Voltage • Input Voltage Range up to 12V • Extremely Tight Load Regulation • Fast Transient Response •Current-limiting and Thermal-limiting |
| 描述与应用 | 300/500mA低压差线性稳压器;•200mV的低压差输出 •电流100mA，450mV的输出电流 •保证300/500mA输出电流 •低接地电流110 A •2％的输出电压精度 •输入电压范围高达12V •极其严格的负载调整 •快速瞬态响应 •电流限制和热限制 |
