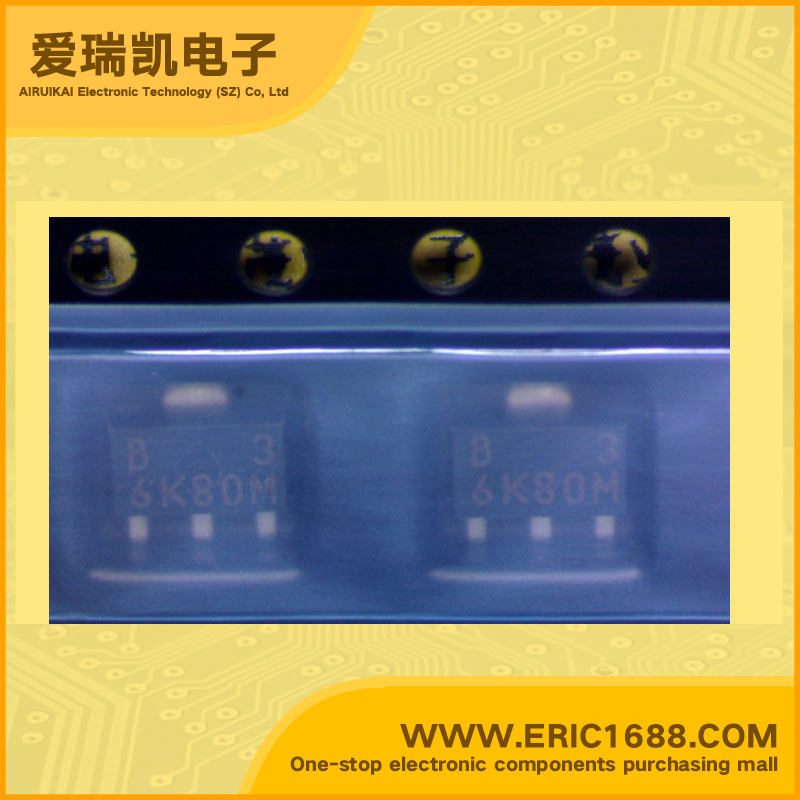

RT9169-14CX LDO Voltage Regulator 1.4V 450mV/0.45V SOT-89 marking B3 Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 7V |
| 输出电压VOUT Voltage - Output | 1.4V |
| 输出电流Io Current - Output | 100mA/0.1A |
| 最大压降VDO Voltage - Dropout | 450mV/0.45V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 无 No |
| 最大耗散功率Pd Power dissipation | 600mW/0.6W |
| Description & Applications | 100mA, 4µA Quiescent Current CMOS LDO Regulator ;•Ultra-Low Quiescent Current: 4 A • Low Dropout: 450mV at 100mA • Wide Operating Voltage Ranges: 2V~6V •Current Limiting Protection • Only 1 F Output Capacitor Required for Stability • High Power Supply Rejection Ratio • Battery-Powered Equipment • Palmtops, Notebook Computers • Hand-held Instruments • PCMCIA Cards |
| 描述与应用 | 4μA100MA CMOS LDO静态电流稳压器;•超低静态电流：4 A •低压差：在100mA时为450mV •宽工作电压范围：2V〜6V •电流限制保护 •只有1 F输出电容器的稳定性要求 •高电源抑制比 •电池供电设备 •掌上电脑，笔记本电脑 •手持式仪器 •PCMCIA卡 |
