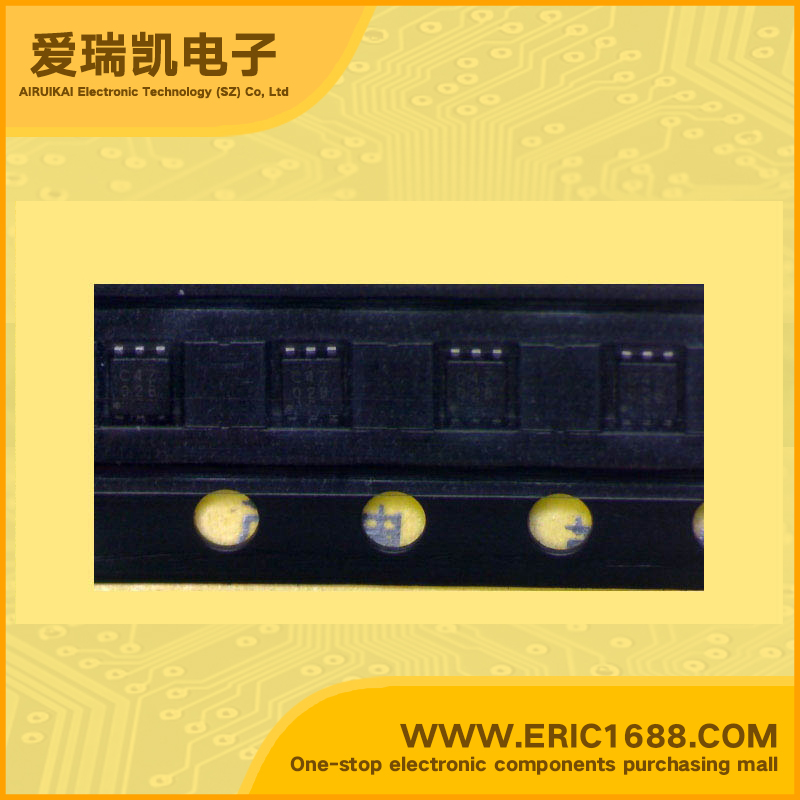

S-812C45BPI LDO Voltage Regulator 4.5V 140mV/0.14V With Enable Pin SNT-6A marking C4Z Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
-0.3~18V
输出电压VOUT
Voltage - Output
4.5V
输出电流Io
Current - Output
10mA
最大压降VDO
Voltage - Dropout
140mV/0.14V
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
有 Yes
最大耗散功率Pd
Power dissipation
500mW/0.5W
Description & ApplicationsHIGH OPERATING VOLTAGE CMOS VOLTAGE REGULATOR ;•Low current consumption: Current at operation: Typ. 1.0 μA, Max. 1.8 μA (product with 3.0 V) • Output voltage: 2.0 to 6.0 V, selectable in 0.1 V step. • Output voltage accuracy: ±2.0% • Output current: 50 mA capable (3.0 V output product, VIN=5 V) • Dropout voltage: Typ. 120 mV (VOUT = 5.0 V, IOUT = 10 mA) • Built-in Power-off circuit: Selectable if power-off function is available or not. Active high or low in the regulator is selectable. • Short-circuit protection: Selectable with/without short-circuit protection. Short-circuited current 40 mA Typ.: in the product with protection. • Operation voltage: 16 V max
描述与应用高工作电压 CMOS电压稳压器;•低电流消耗:操作电流:典型。 1.0μA,最多。 1.8μA(3.0 V的产品) •输出电压:2.0到6.0 V,可选择在0.1 V步骤。 •输出电压精度:±2.0% •输出电流:50毫安能力(3.0 V输出产品,VIN= 5 V) •漏失电压:典型。 120毫伏(VOUT= 5.0 V,IOUT = 10 mA时) •内置电源切断电路:可选的,如果断电功能​​是否可用。 在调节高或低是可选的。 •短路保护:可选择有/无短路保护。  短路电流40 mA(典型值):在保护的产品。 •工作电压:16 V最大
