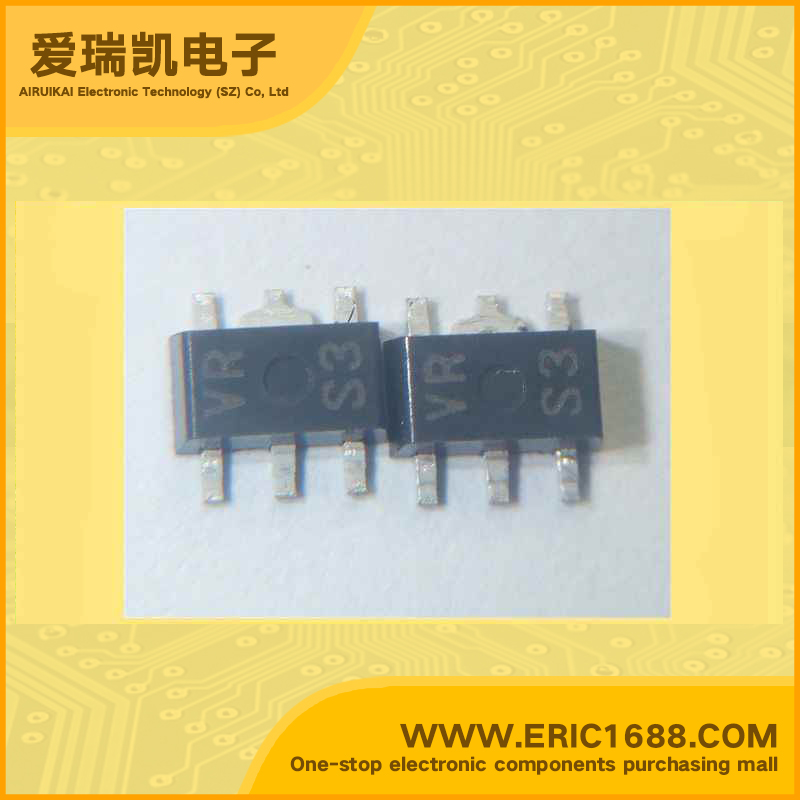

S-87050EF LDO Voltage Regulator 5V 150mV/0.15V SOT89-5 marking VR Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
-0.3~26V
输出电压VOUT
Voltage - Output
5V
输出电流Io
Current - Output
30mA
最大压降VDO
Voltage - Dropout
150mV/0.15V
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
无 No
最大耗散功率Pd
Power dissipation
1W
Description & ApplicationsHIGH WITHSTAND-VOLTAGE VOLTAGE REGULATOR WITH RESET FUNCTION ;•Accuracy of output voltage: ±2.4 % 2.5 V to 5.8 V (0.1 V step) • Accuracy of detection voltage: ±2.4 % (For the F type, the release voltage is ±1.1 %) 2.1 V to 11.3 V (0.1 V step) •Low I/O voltage difference: 0.15 V typ. (at IOUT=30 mA, VOUT=5.0 V) 0.45 V typ. (at IOUT=30 mA, VOUT=3.0 V) • Low current consumption: At Operation mode: 8 μA max. At Shutdown mode: 3.5 μA max. (Available for the C/E/G type) • Wide operating voltage range: 24 V max. • Wide operating temperature range: −40°C to +85°C • Built-in delay circuit or shutdown circuit • Built-in short-circuit protection circuit
描述与应用耐高压 稳压器与复位功能;•输出电压精度:±2.4% 2.5 V到5.8 V(0.1 V步) •检测电压精度:±2.4%(F型产品,解除电压为±1.1%) 2.1 V至11.3 V(0.1 V步) •低I/ O电压差:典型值0.15 V。 (IOUT=30 mA时,VOUT=5.0 V)  典型值0.45 V。 (IOUT= 30 mA时,VOUT= 3.0 V) •低电流消耗:在操作模式:最大8μA。  在关机模式:3.5μA以下。 (C / E/ G型) •宽工作电压范围:24 V最大。 •宽工作温度范围:-40°C至+85°C •内置延迟电路或关断电路 •内置短路保护电路
