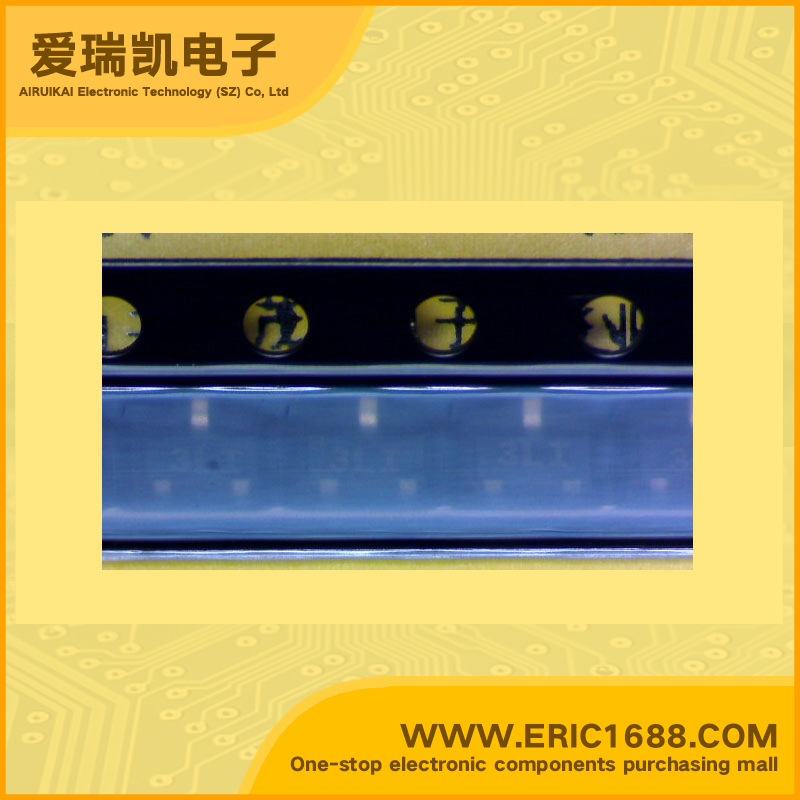

SC431LISK-25.TR Voltage Reference Power Management IC 2.495V~30V SOT-23 marking 3LI Linear Regulator Power Switching Supplies
| 参考类型 Reference Type | |
| 输出电压Vo Voltage - Output | 2.495V~30V |
| 误差 Tolerance | ±0.5% |
| 温度系数 Temperature Coefficient | |
| 输入电压 Voltage - Input | 2.495V~30V |
| 阴极电流 Current - Cathode | 130µA |
| 输出电流IOUT Current - Output | 150mA |
| Description & Applications | FEATURES •Adjustable Shunt Regulator •Wide operating current range 130µA to 150mA •Low dynamic output impedance 0.25 Ω typ. •Trimmed bandgap design + 0.5% •Alternate for TL1431, TL431, LM431 & AS431 •Industrial temperature range •Available in SOT-23-3 and SO-8 packages. Also available in Lead-free, fully WEEE and RoHS compliant. Applications •Linear Regulators •Adjustable Supplies •Switching Power Supplies •Battery Operated Computers •Instrumentation •Computer Disk Drives |
| 描述与应用 | 特点 •可调并联稳压器 •宽工作电流范围130μA到150mA •低动态输出阻抗0.25Ω（典型值）。 •修剪带隙设计+0.5％ •替TL1431，TL431，LM431 AS431 •工业温度范围 •可在SOT-23-3，SO-8封装。也可在无铅，完全符合WEEE和RoHS。 应用 •线性稳压器 •可调用品 •开关电源 •电池电脑 •仪表 •计算机磁盘驱动器 |
