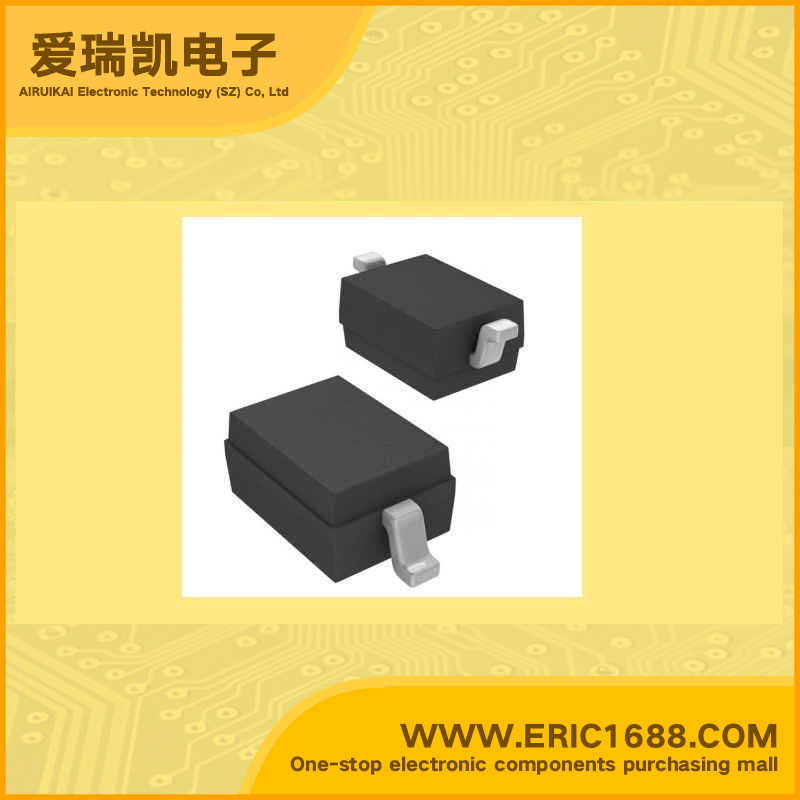

SD05.TCT TVS/ESD 5V 24A SOD323/0805-5V marking 5u

Hot selling goods

Product description
极性
Polarization
单向 Unidirectional
反向关断电压/工作电压VRWM
Reverse Standoff Voltage
5V
反向击穿电压VBR
Breakdown Voltage
6V
峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation
350W
峰值脉冲电流IPPm
Peak Forward Surge Current
24A
额定耗散功率Pd
Power dissipation
Description & ApplicationsFeatures • Single Line TVS Diode for ESD Protection in Portable Electronics • 350 Watts peak pulse power (tp = 8/20µs) • Transient protection for data lines to IEC 61000-4-2 (ESD) ±25kV (air), ±10kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (Lightning) 24A (8/20µs) • Small package for use in portable electronics • Suitable replacement for MLV’s in ESD protection applications • Protects one I/O or power line • Low clamping voltage • Working voltages: 5V and 12V • Low leakage current • Solid-state silicon-avalanche technology
描述与应用特点 • 单线TVS二极管的ESD保护便携式电子产品 • 350瓦峰值脉冲功率(TP =8/20μS) • 瞬态保护的数据线 IEC61000-4-2(ESD)±25kV的(空气),±10kV的(接触) IEC61000-4-4(EFT)40A(5/50ns) IEC61000-4-5(闪电)24A(8/20μS) • 小型封装中使用的便携式电子产品 • 合适的替代MLV ESD保护 应用程序 • 保护一个I / O或电源线 • 低钳位电压 • 工作电压:5V和12V • 低漏电流 • 固态硅雪崩技术
