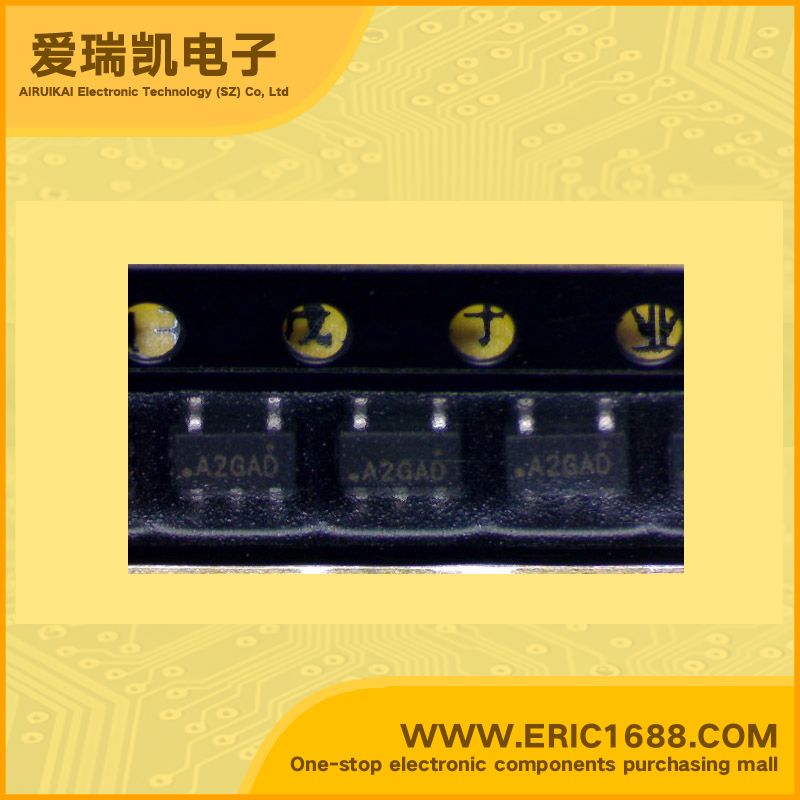

SI9183DT-18 LDO Voltage Regulator 1.8V 180mV/0.18V SOT-153/SOT23-5 marking A2 Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 6.5V |
| 输出电压VOUT Voltage - Output | 1.8V |
| 输出电流Io Current - Output | 150mA/0.15A |
| 最大压降VDO Voltage - Dropout | 180mV/0.18V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 无 No |
| 最大耗散功率Pd Power dissipation | |
| Description & Applications | High-Performance, Size Saving 150-mA CMOS LDO Regulator ;• Low 135-mV Dropout at 150-mA Load • Guaranteed 150-mA Output Current •300-mA Peak Output Current Capability • Uses Low ESR Ceramic Output Capacitor • Fast Load And Line Transient Response • Low Output Noise • 1- A Maximum Shutdown Current • Built-in Short Circuit And Thermal Protection •Voltage Options |
| 描述与应用 | 高性能，节能150 mA的CMOS LDO稳压器;•135 mV的低漏失在150 mA负载 •保证150 mA的输出电流 •300 mA峰值输出电流能力 •使用低ESR陶瓷输出电容器 •快速负载和线路瞬态响应 •低输出噪声 •1 - A最大关断电流 •内置短路保护和热保护 •电压选项？ |
