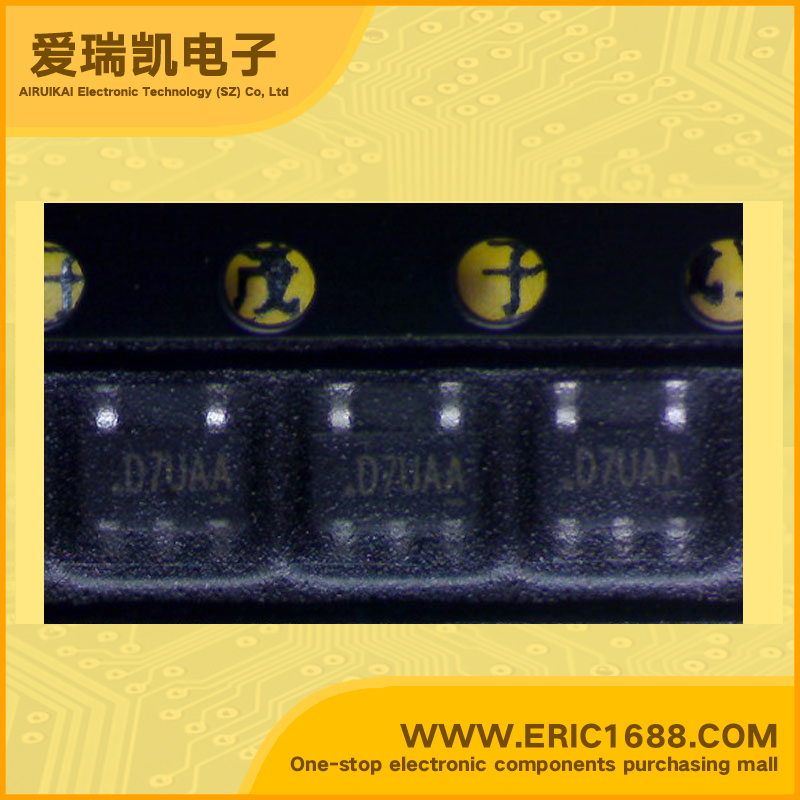

SI91842DT-30-T LDO Voltage Regulator Adjustable SOT-23 marking D7U Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators |
1 |
| 输入电压VIN Voltage - Input |
2~6V |
| 输出电压VOUT Voltage - Output |
可调/adj |
| 输出电流Io Current - Output |
150mA/0.15A |
| 最大压降VDO Voltage - Dropout |
|
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin |
无 No |
| 最大耗散功率Pd Power dissipation |
|
| Description & Applications | 150-mA Low-Noise LDO Regulator ;•Ultra Low Dropout—130 mV at 150-mA Load •Low Noise—75 V(rms) (10-Hz to 100-kHz Bandwidth) •Out-of-Regulation Error Flag (power good) •Shutdown Control •110 A Ground Current at 150-mA Load •Fast Start-Up (50 S) •300mA Peak Output Current Capability •Uses Low ESR Ceramic Capacitors •Fast Line and Load Transient Response ( 30 s) •1A Maximum Shutdown Current •Output Current Limit •Reverse Battery Protection •Built-in Short Circuit and Thermal Protection |
| 描述与应用 | 150-mA低噪声LDO稳压器;•超低降130 mV在150 mA负载 •低噪声75 V（RMS）（10 Hz至100 kHz带宽） •监管错误标志（电源良好） •关断控制 •接地电流在150-mA负载110？ •快速启动（50） •300mA峰值输出电流能力 •使用低ESR陶瓷电容器 •快速电压和负载瞬态响应（30？） 1A最大关断电流 •输出电流限制 •反向电池保护 •内置短路保护和热保护 |
