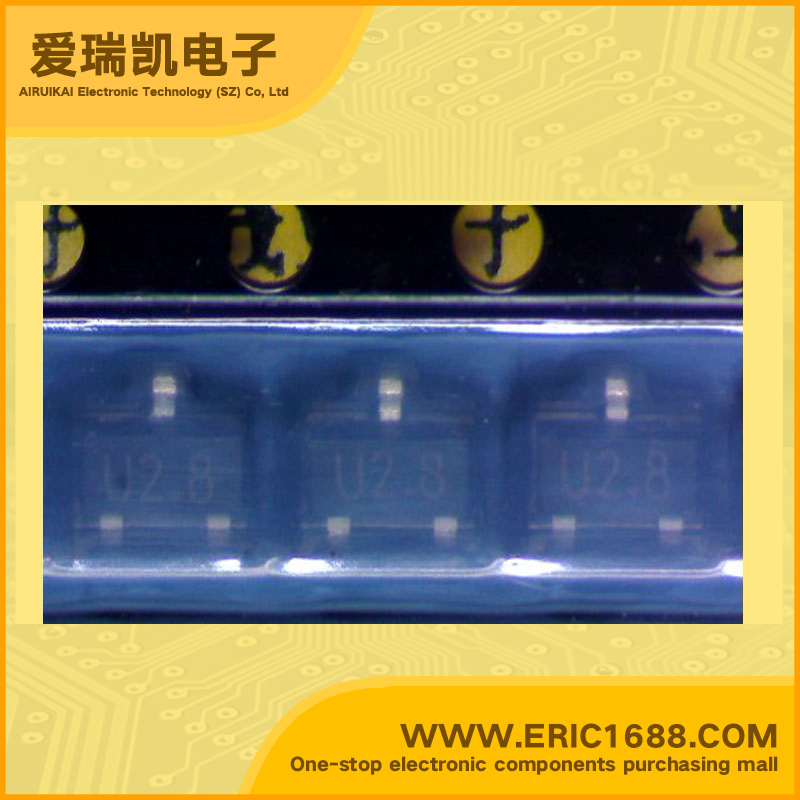

SLVU2.8.TCT TVS/ESD 2.8V 24A SOT-23-2.8V marking U2.8
极性 Polarization | |
反向关断电压/工作电压VRWM Reverse Standoff Voltage | 2.8V |
反向击穿电压VBR Breakdown Voltage | 40V |
峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | 400W |
峰值脉冲电流IPPm Peak Forward Surge Current | 24A |
额定耗散功率Pd Power dissipation | |
Description & Applications | Features • EPD TVS Diode Array For ESD and Latch-Up Protection • 400 Watts peak pulse power (tp= 8/20µs) • Transient protection for high speed data lines to IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (Lightning) 24A (8/20µs) • Protects two line pairs (four lines) • Comprehensive pin out for easy board layout • Low capacitance • Low leakage current • Low operating and clamping voltages • Solid-state EPD TVS process technology |
描述与应用 | 特点 •EPD TVS二极管阵列的ESD和闭锁保护 •400瓦峰值脉冲功率(TP =8/20μS) •瞬态保护高速数据线 IEC61000-4-2(ESD)±15kV(空气),±8kV(接触) IEC61000-4-4(EFT)40A(5/50ns) IEC61000-4-5(闪电)24A(8/20μS) •保护两线对(四线) •综合针容易的电路板布局 •低电容 •低漏电流 •低工作电压和钳位 •固态EPD TVS工艺技术 |
