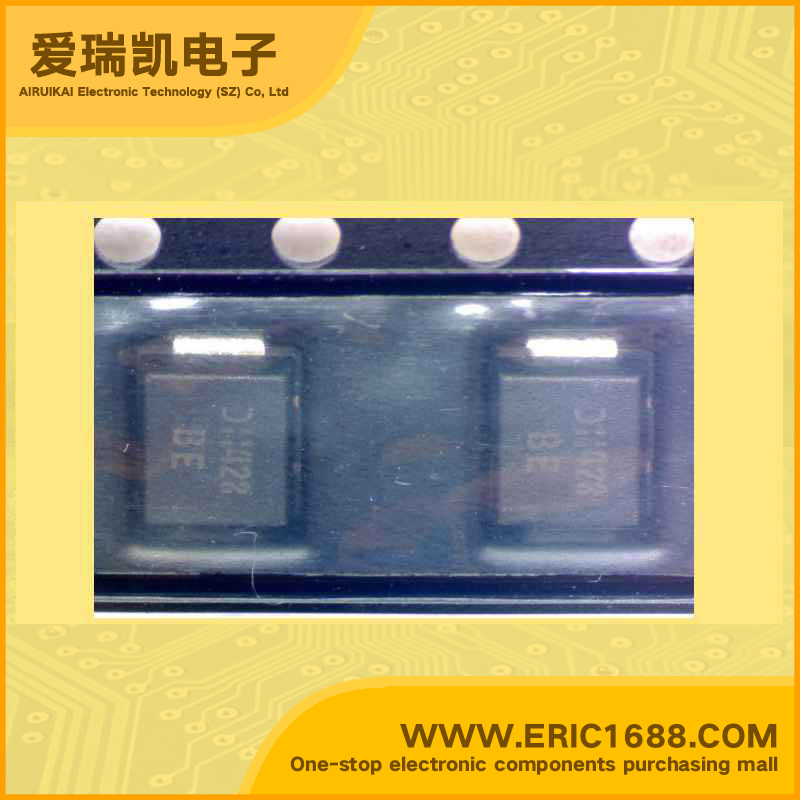

SMBJ12CA-13 TVS/ESD 12V 30.2A 5W DO-214AA/SMB-12V marking BE
| 极性 Polarization | 双向 Bidirectional |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | 12V |
| 反向击穿电压VBR Breakdown Voltage | 14.3V |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | 600W |
| 峰值脉冲电流IPPm Peak Forward Surge Current | 30.2A |
| 额定耗散功率Pd Power dissipation | 5W |
| Description & Applications | Features • 600W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR • 600W Peak Pulse Power Dissipation • 5.0V - 170V Standoff Voltages • Glass Passivated Die Construction • Uni- and Bi-Directional Versions Available • Excellent Clamping Capability • Fast Response Time • Lead Free Finish/RoHS Compliant (Note 1) • Green Molding Compound (No Halogen and Antimony) |
| 描述与应用 | 特点 •600W表面贴装瞬态电压抑制器 •600W峰值脉冲功率耗散 •断态电压5.0V - 170V •玻璃钝化模施工 •单向和双向版本 •出色的钳位能力 •快速响应时间 •铅涂层/符合RoHS标准（注1） •绿色模塑化合物（无卤素和锑） |
