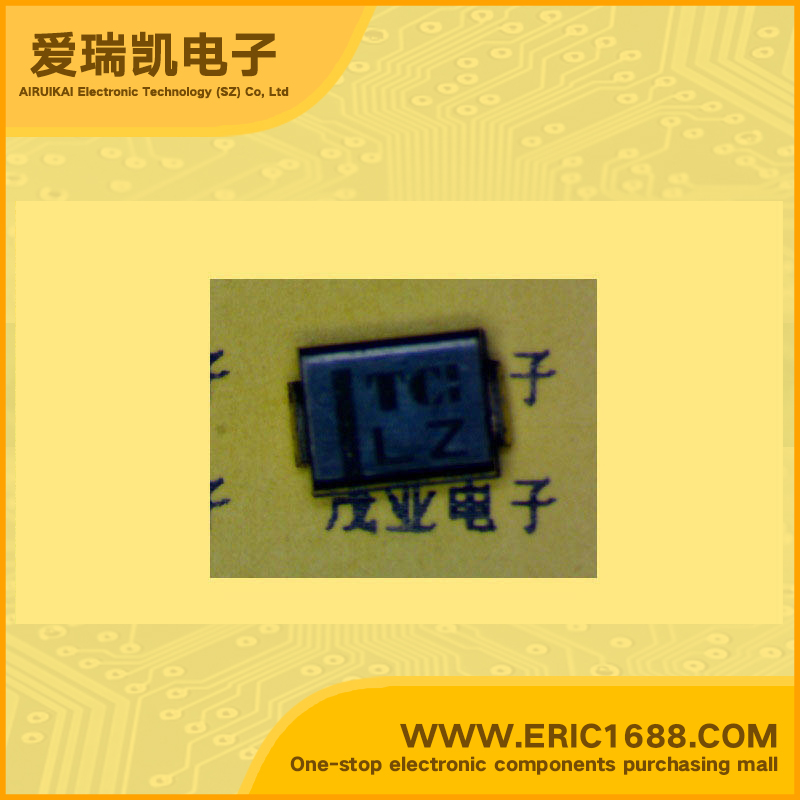

SMBJ24A-23-T70 TVS/ESD 24V 15.4A 5W DO-214AA/SMB-24V marking L2
| 极性 Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | 24V |
| 反向击穿电压VBR Breakdown Voltage | 28.1V |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | 600W |
| 峰值脉冲电流IPPm Peak Forward Surge Current | 15.4A |
| 额定耗散功率Pd Power dissipation | 5W |
| Description & Applications | Features • 600W Surface Mount Transient Voltage Suppressor • Stand-off voltage from 5.0 to 170 volts • 600W Peak Pulse Power capability on 10/1000 µs waveform repetition rate(duty cycle): 0.01% • Fast response time: typically less than 1.0ps from 0v to VBR • Low incremental surge resistance, excellent clamping capability • Typical IR less than 1 uA above 10V • High temperature soldering guaranteed:250°C/10 seconds at terminals • RoHS Compliant |
| 描述与应用 | 特点 •600W表面贴装瞬态电压抑制器•待机电压从5.0到170伏特 •600W峰值脉冲功率10/1000微秒波形能力重复率（占空比）：0.01％ •快速响应时间：通常小于1.0PS从0V到VBR •低增量浪涌性，优良的钳位能力 •典型IR10V以上低于1微安 •高温焊接保证：250°C/10秒钟码头 •符合RoHS标准 |
