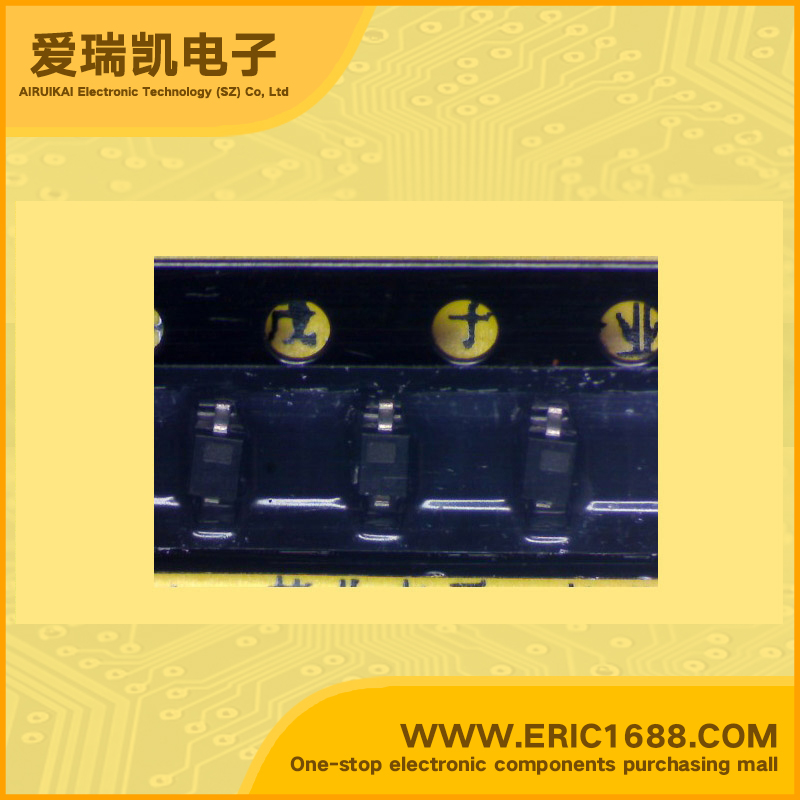

SMV1236-011 Variable Capacitance Diodes (Varicaps, Varactors) 15V 15.5pF-18.5pF 1.6-2.0 SOD-323/SC-76/0805 marking AQ UHF SHF tuning/High capacitance ratio
| 反向电压VR Reverse Voltage | 15V |
| 电容值C Diode capacitance | 15.5pF-18.5pF |
| @反向电压VR @Reverse Voltage | 1V |
| 电容值C Diode capacitance | 9.2pF |
| @反向电压VR @Reverse Voltage | 3V |
| 电容比 Capacitance ratio | 1.6-2.0 |
| Description & Applications | Hyperabrupt Tuning Varactors Description The SMV1231–SMV1237 series of silicon hyperabrupt junction varactor diodes is designed for use in VCOs with low tuning voltage operation. The low resistance of these varactors makes themappropriate for high Q resonators in wireless system VCOs to frequencies beyond 2.5 GHz. The SMV1231–SMV1237 series is ully characterized for capacitance and resistance over temperature. SPICE model is provided. High capacitance ratio Low series resistance for low phase noise Multiple packages SOT-23, SOD-323, SC-70 and SC-79 Designed for high volume commercial applications Full characterization with SPICE models |
| 描述与应用 | 超突变调谐变容二极管 描述 SMV1231 SMV1237系列硅超突变结变容二极管是专为在VCO调谐电压低的使用 操作。这些变容二极管的低电阻使它们适合高Q值谐振器在无线系统的VCO 超过2.5 GHz的频率。 SMV1231 SMV1237系列 随着温度的电容和电阻充分的特点。 SPICE模型 高电容率 低相位噪声低串联电阻 多个程序封装SOD-323，SOT-23，SC-70，SC-79 SPICE模型全特性 |
