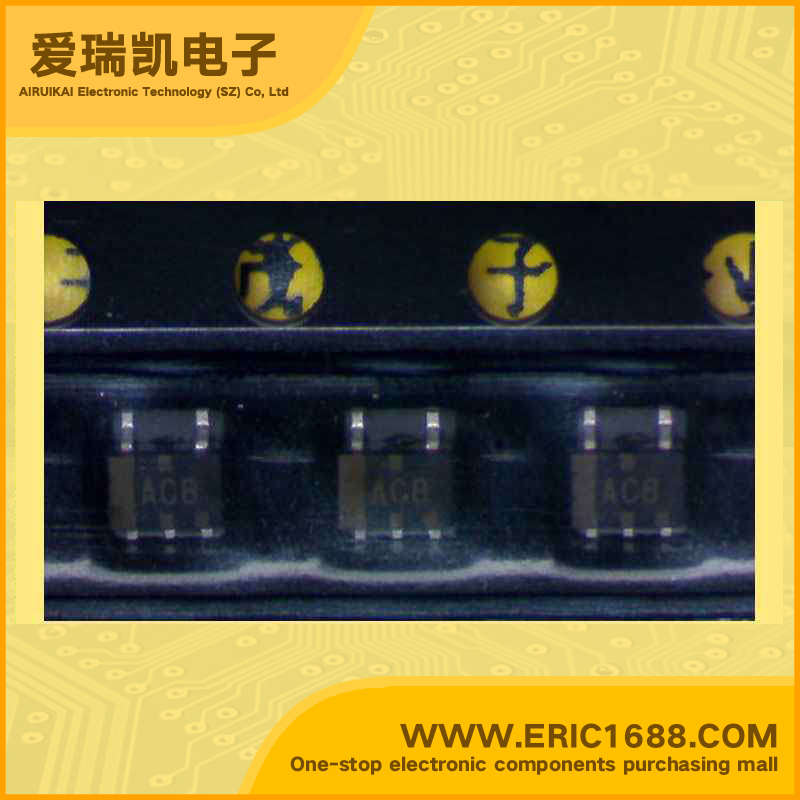

Integrated Circuit（IC） inverter SN74AHC1G04HDCKR SOT-353/SC70-5/SC-88A marking ACH
| 逻辑类型 Logic Type | 反相器 Inverter |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 1 |
| 电源电压Vcc Voltage - Supply | 2v~5.5v |
| 静态电流Iq Current - Quiescent (Max) | 10uA |
| 输出高，低电平电流 Current - Output High, Low | -8mA,8mA |
| 低逻辑电平 Logic Level - Low | 0.5v~1.65v |
| 高逻辑电平 Logic Level - High | 1.5v~3.85v |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 5.3ns @ 5V，50pF |
| Description & Applications | SINGLE inverter GATE ;Operating Range of 2 V to 5.5 V Max tdp of 6.5 ns at 5 V Low Power Consumption, 10-µA Max ICC ±8-mA Output Drive at 5 V |
| 描述与应用 | 单个逆变器门;2 V至5.5 V的工作范围 在5 V最大散热设计功耗（TDP）为6.5 ns 低功耗，10μA最大ICC ±8 mA输出驱动在5 V |
