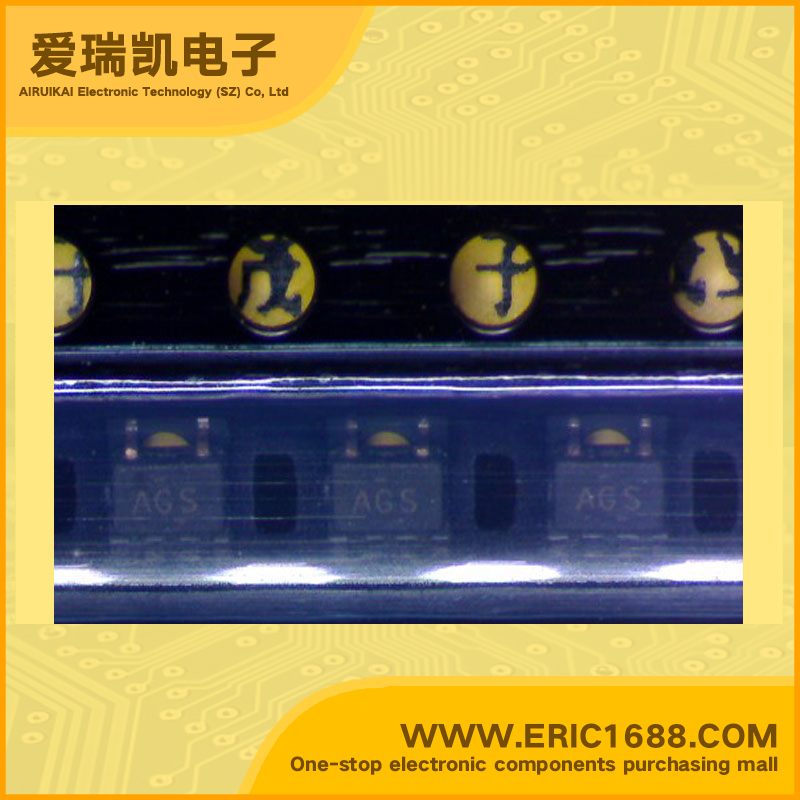

Integrated Circuit(IC) OR gate SN74AHC1G32DCKR SOT-153/SOT23-5/SC-74A marking AG

Hot selling goods

Product description
逻辑类型
Logic Type
或门 OR Gate
电路数
Number of Circuits
1
输入数
Number of Inputs
2
电源电压Vcc
Voltage - Supply
2v~5.5v
静态电流Iq
Current - Quiescent (Max)
10uA
输出高,低电平电流
Current - Output High, Low
-8mA,8mA
低逻辑电平
Logic Level - Low
0.5V~1.65V
高逻辑电平
Logic Level - High
1.5V~3.85V
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
5.3ns @ 5V,50pF
Description & ApplicationsSINGLE 2-INPUT POSITIVE-OR GATE ; Operating Range of 2 V to 5.5 V  Max tpd of 6.5 ns at 5 V  Low Power Consumption, 10-µA Max ICC  ±8-mA Output Drive at 5 V  Schmitt Trigger Action at All Inputs Makes the Circuit Tolerant for Slower Input Rise and Fall Time  Latch-Up Performance Exceeds 250 mA Per JESD 17
描述与应用单2输入正或门;2 V至5.5 V的工作范围 最大5 V时为6.5 ns吨 低功耗,10μA最大ICC ±8 mA输出驱动在5 V 施密特触发器动作在所有输入使 电路容错输入较慢的上升和下降时间 闭锁性能超过250 mA每 JESD17
