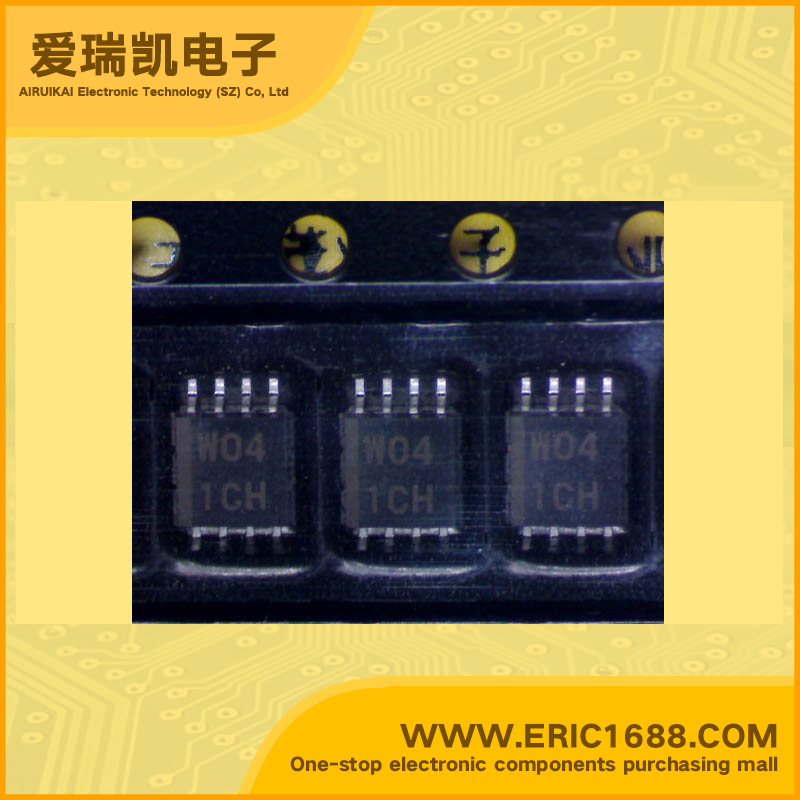

Integrated Circuit(IC) inverter SN74AHC2G04HDCTR VFSOP8/US8 marking W04

Hot selling goods

Product description
逻辑类型
Logic Type
反相器 Inverter
电路数
Number of Circuits
1
输入数
Number of Inputs
2
电源电压Vcc
Voltage - Supply
2v~5.5v
静态电流Iq
Current - Quiescent (Max)
10uA
输出高,低电平电流
Current - Output High, Low
低逻辑电平
Logic Level - Low
0.5v~1.65v
高逻辑电平
Logic Level - High
1.5v~3.85V
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
3.6ns @ 5V,50pF
Description & ApplicationsTRIPLE INVERTER GATE ;Operating Range 2-V to 5.5-V VCC Switching Speed Typ3.9ns(@ VCC=3.0V, (TOP VIEW)CL=15pF) All inputs VIH(Max)=5.5V (@Vcc=0 to 5.5V) low power dissipation lcc (max) 1uA(@Ta=25C)
描述与应用三重逆变器门;经营范围2-V到5.5 V的VCC 开关的速度Typ3.9ns(VCC= 3.0V,                 (顶视图)CL=15PF) 所有输入VIH(最大)= 5.5V(VCC =0〜5.5V) 低功耗LCC(最大值)微安(T A= 25°C)
