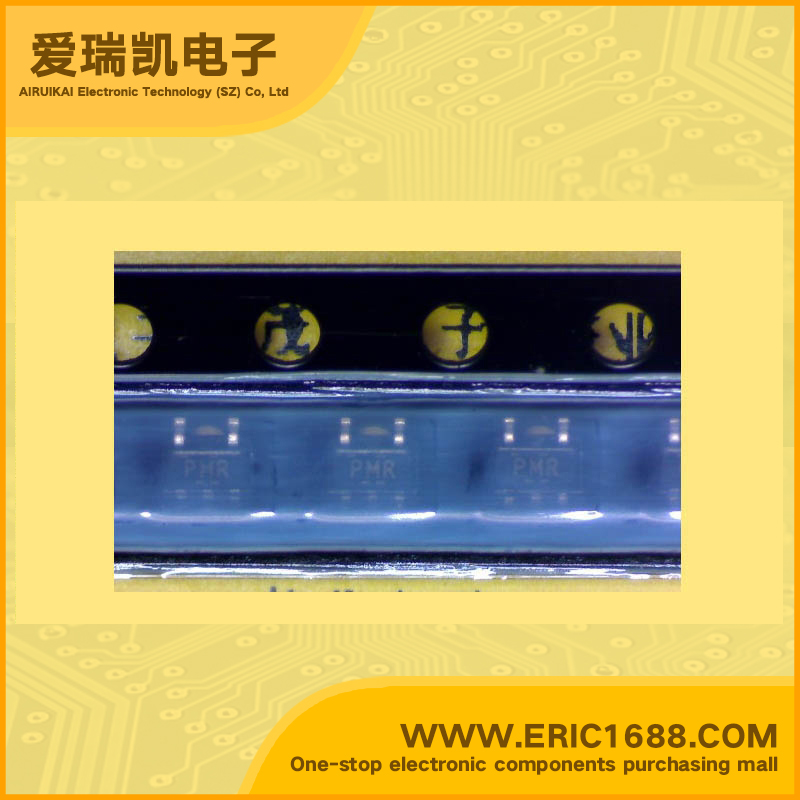

Logic circuit Buffer/Line Driver SN74CBTD1G125DCKR SOT-353/SC-88A/SC70-5/TSSOP5 marking PMR
| 逻辑类型 Logic Type | |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 1 |
| 电源电压Vcc Voltage - Supply | 4.5 V ~ 5.5 V |
| 静态电流Iq Current - Quiescent (Max) | |
| 输出高，低电平电流 Current - Output High, Low | FEATURES • SINGLE FET BUS SWITCH WITH LEVEL SHIFTING • 5-Ω Switch Connection Between Two Ports • ESD Protection Exceeds JESD 22 – 2000-V Human-Body Model (A114-A) – 200-V Machine Model (A115-A) • TTL-Compatible Control Input Levels • Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II |
| 低逻辑电平 Logic Level - Low | 特点 •单FET总线开关电平转换 •5Ω开关连接两个港口之间 •ESD保护超过JESD22 - 2000-V人体模型（A114-A） - 200-V机型号（A115-A） •TTL兼容控制输入电平 •闭锁性能超过100 mA每JESD 78，II类 |
| 高逻辑电平 Logic Level - High | |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | |
| Description & Applications | |
| 描述与应用 |
