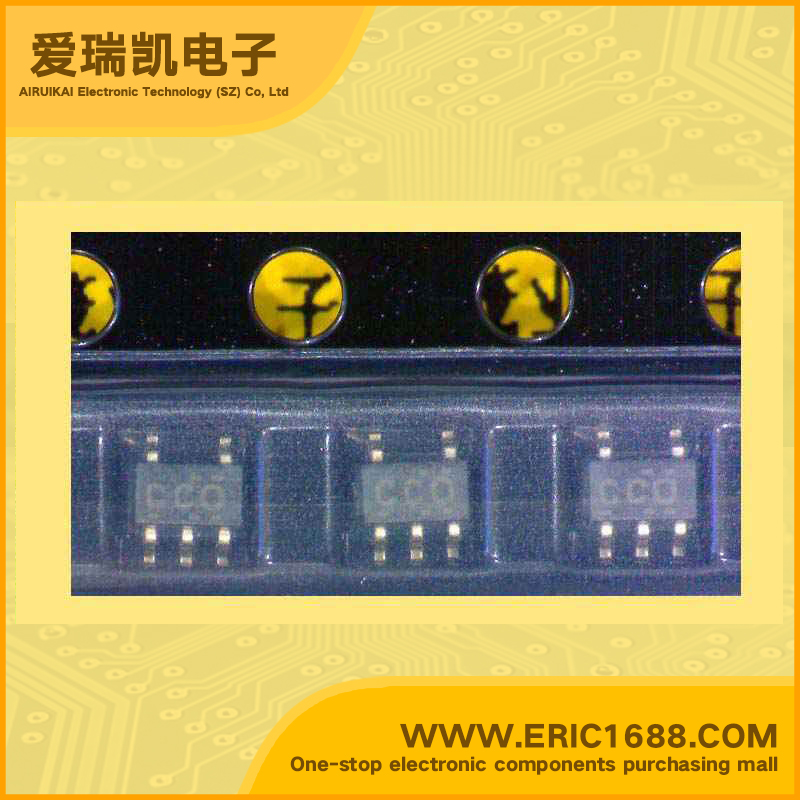

Integrated Circuit（IC） inverter SN74LVC1G04DCKR SOT-353/SC70-5/SC-88A marking
| 逻辑类型 Logic Type | 反相器 Inverter |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 1 |
| 电源电压Vcc Voltage - Supply | 1.65V~5.5V |
| 静态电流Iq Current - Quiescent (Max) | 10µA |
| 输出高，低电平电流 Current - Output High, Low | -32mA,32mA |
| 低逻辑电平 Logic Level - Low | 0.7 V ~ 0.8 V |
| 高逻辑电平 Logic Level - High | 1.7 V ~ 2 V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 3.7ns @ 5V，50pF |
| Description & Applications | SINGLE INVERTER GATE ；• Available in the Texas Instruments NanoFree™ • Latch-Up Performance Exceeds 100 mA Per Package JESD 78, Class II • Supports 5-V VCC Operation • Inputs Accept Voltages to 5.5 V • Max tpd of 3.6 ns at 3.3 V • Low Power Consumption, 10-μA Max ICC • ±24-mA Output Drive at 3.3 V • Ioff Supports Partial-Power-Down Mode Operation • ESD Protection Exceeds JESD 22 – 2000-V Human-Body Model (A114-A) – 1000-V Charged-Device Model (C101) |
| 描述与应用 | 单个逆变器门;•可在德州仪器NanoFree™•闭锁性能超过100 mA每 包装JESD 78，II类 •支持5-V VCC操作 •接受输入电压为5.5 V •最大TPD为3.6 ns在3.3 V •低功耗，10μA最大ICC •±24 mA输出驱动在3.3 V •IOFF支持部分掉电模式操作 •ESD保护超过JESD22 - 2000-V人体模型（A114-A） - 1000-V带电器件模型（C101） |
