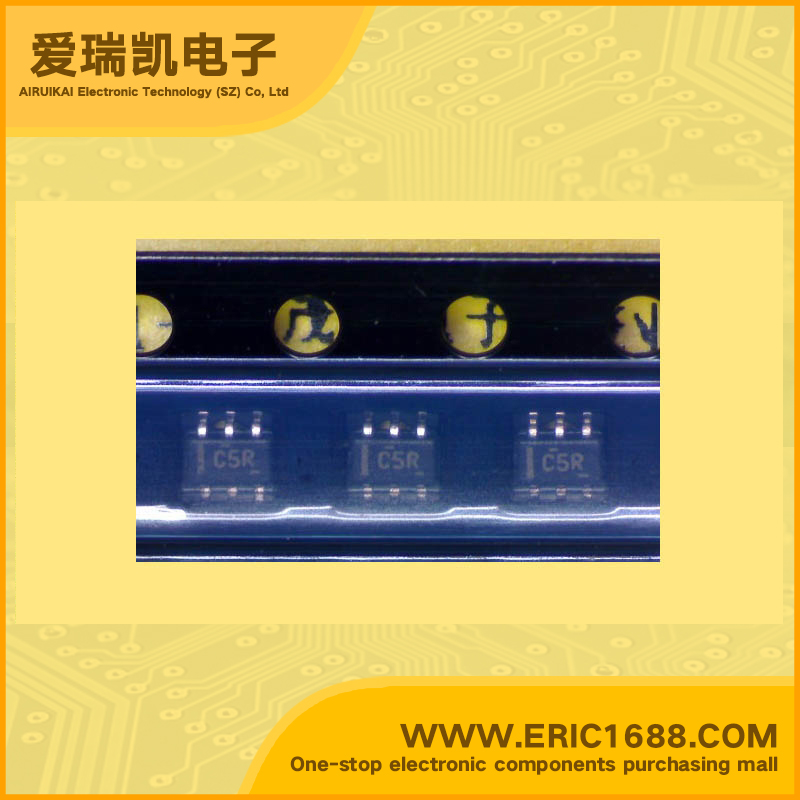

Integrated Circuit（IC） analog switch SN74LVC1G3157K-X SOT-363 marking C5R
| 开关配置 Circuit | 单刀双掷 1*SPDT |
| 导通电阻 On-State Resistance | 6Ω/Ohm |
| 电源电压 Voltage - Supply | 1.65 V ~ 5.5 V |
| Description & Applications | SINGLE-POLE DOUBLE-THROW ANALOG SWITCH The SN74LVC1G3157 can handle both analog and digital signals. The device permits signals with amplitudes of up to VCC (peak) to be transmitted in either direction. Applications include signal gating, chopping, modulation or demodulation (modem) Low On-State Resistance, Typically 6 Ω (VCC = 4.5 V) ESD Protection Exceeds JESD 22 2000-V Human-Body Model (A114-A) 200-V Machine Model (A115-A) High Degree of Linearity 1000-V Charged-Device Model (C101) High Speed, Typically 0.5 ns (VCC = 3 V, CL = 50 pF) |
| 描述与应用 | 单刀双掷模拟开关 SN74LVC1G3157可以处理模拟和数字信号。该设备允许信号振幅 至VCC（峰值）要发送的任一方向。 应用包括信号门控，斩波，调制或解调（调制解调器） 低导通电阻，通常为6Ω （VCC = 4.5 V） ESD保护超过JESD22 2000-V人体模型（A114-A） 200-V机型号（A115-A） 高线性度 1000-V带电器件模型（C101） 高速，通常为0.5纳秒 （VCC= 3 V，CL=50 PF） |
