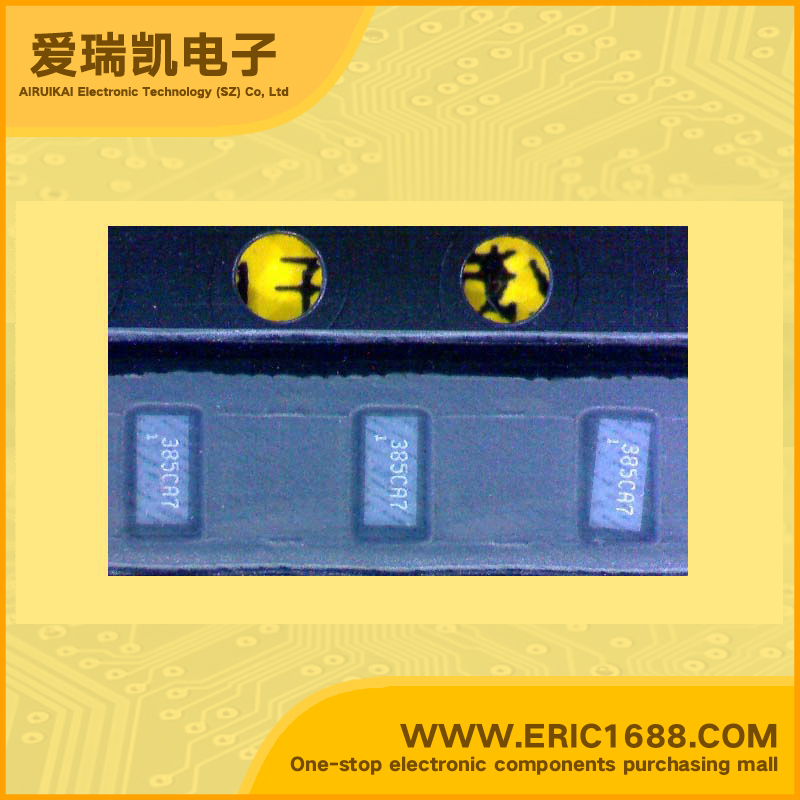

Integrated Circuit(IC) NAND gate SN74LVC2G00YEAR 8-DSBGA/8-WCSP marking

Hot selling goods

Product description
逻辑类型
Logic Type
与非门 NAND Gate
电路数
Number of Circuits
1
输入数
Number of Inputs
1
电源电压Vcc
Voltage - Supply
1.65V~5.5V
静态电流Iq
Current - Quiescent (Max)
10µA
输出高,低电平电流
Current - Output High, Low
-32mA,32mA
低逻辑电平
Logic Level - Low
高逻辑电平
Logic Level - High
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
3ns @ 5V,50pF
Description & ApplicationsDUAL 2-INPUT POSITIVE-NAND GATE ;Available in the Texas Instruments • Typical VOHV (Output VOH Undershoot) NanoFree™ Package >2 V at VCC = 3.3 V, TA = 25°C • Supports 5-V VCC Operation • Ioff Supports Partial-Power-Down Mode • Inputs Accept Voltages to 5.5 V Operation • Latch-Up Performance Exceeds 100 mA Per • Max tpd of 4.3 ns at 3.3 V JESD 78, Class II • Low Power Consumption, 10-µA Max ICC • ESD Protection Exceeds JESD 22 • ±24-mA Output Drive at 3.3 V – 2000-V Human-Body Model (A114-A) • Typical VOLP (Output Ground Bounce) <0.8 V at V – 1000-V Charged-Device Model (C101)VCC= 3.3 V, TA= 25°C
描述与应用双路2输入正与非门;德州仪器•典型VOHV (输出VOH冲) NanoFree™封装>2 V在VCC =3.3 V,TA = 25°C •支持5-V VCC操作 •IOFF支持部分掉电模式 •输入接受5.5 V操作电压 •闭锁性能超过100 mA每 •最大TPD为4.3 ns在3.3 V JESD 78,II类 •低功耗,10μA最大ICC •ESD保护超过JESD22 •±24 mA输出驱动在3.3 V - 2000-V人体模型(A114-A) •典型的VoIP (输出地弹跳) 在V<0.8 V - 1000-V带电器件模型(C101)VCC = 3.3 V,TA= 25°C
