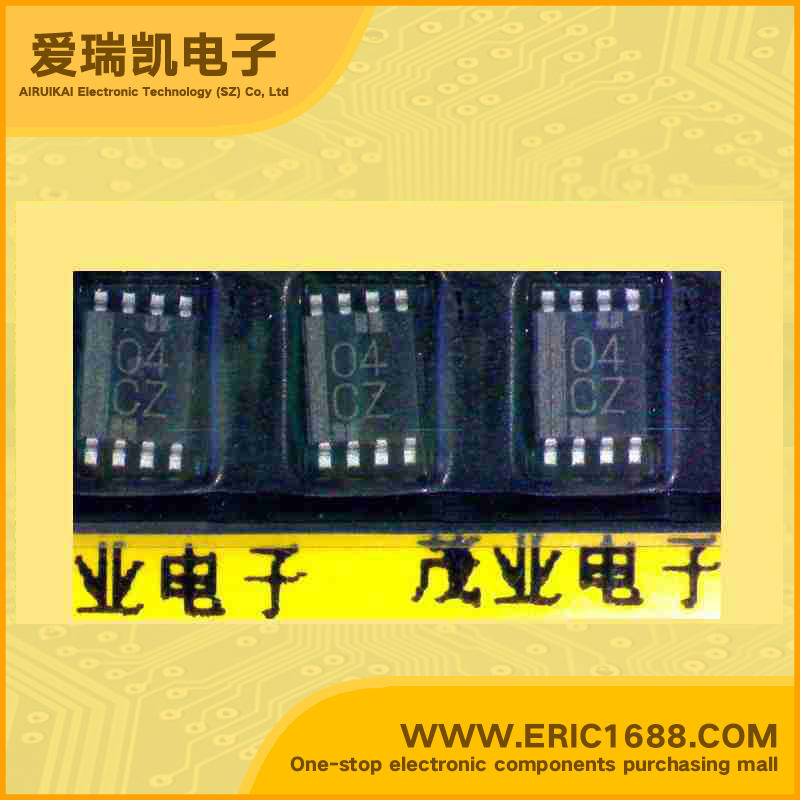

Integrated Circuit（IC） inverter SN74LVC3G04DCU3 VFSOP8/US8 marking 04CZ
| 逻辑类型 Logic Type | 反相器 Inverter |
| 电路数 Number of Circuits | 3 |
| 输入数 Number of Inputs | 1 |
| 电源电压Vcc Voltage - Supply | 1.65V~5.5V |
| 静态电流Iq Current - Quiescent (Max) | 10µA |
| 输出高，低电平电流 Current - Output High, Low | -32mA,32mA |
| 低逻辑电平 Logic Level - Low | 0.7 V ~ 0.8 V |
| 高逻辑电平 Logic Level - High | 1.7 V ~ 2 V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 4.1ns @ 3.3V，50pF |
| Description & Applications | TRIPLE INVERTER GATE ；"• Available in the Texas Instruments • Typical VOHV (Output VOH Undershoot) NanoFree™ Package >2 V at VCC= 3.3 V, TA= 25°C • Supports 5-V VCC Operation • I off Supports Partial-Power-Down Mode • Inputs Accept Voltages to 5.5 V Operation • Latch-Up Performance Exceeds 100 mA Per • Max tpd of 4.1ns at 3.3 V JESD 78, Class II • Low Power Consumption, 10-µA Max ICC • ESD Protection Exceeds JESD 22 • ±24-mA Output Drive at 3.3 V – 2000-V Human-Body Model (A114-A) • Typical VOHV(Output Ground Bounce)<0.8 V at – 1000-V Charged-Device Model (C101) VCC= 3.3 V, TA= 25°C" |
| 描述与应用 | 三重逆变器门;•可在德州仪器•典型VOHV （输出VOH冲） NanoFree™封装>2 V在VCC=3.3 V，TA= 25°C •支持5-V VCC操作•我 关闭支持部分掉电模式 •输入接受5.5 V操作电压 •闭锁性能超过100 mA每 •最大4.1ns TPD在3.3 V JESD 78，II类 •低功耗，10μA最大ICC •ESD保护超过JESD22 •±24 mA输出驱动在3.3 V - 2000-V人体模型（A114-A） •典型VOHV（输出地弹跳）<0.8 V - 1000-V带电器件模型（C101） VCC= 3.3 V，TA= 25°C“ |
