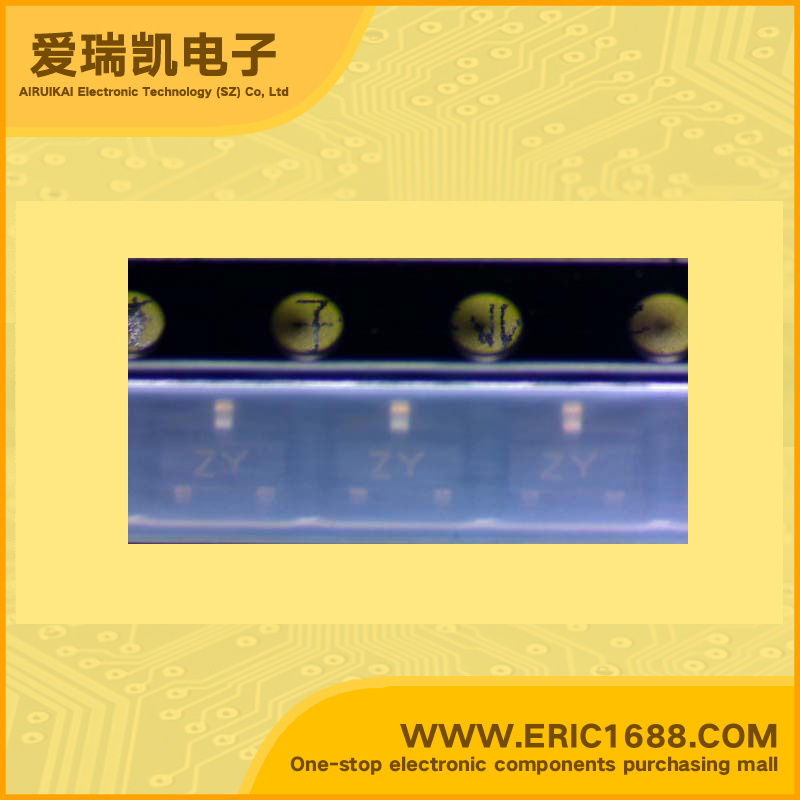

STC2059Y NPN Transistors(BJT) 30V 20mA 550MHz 120~240 300mV/0.3V SOT-23/SC-59 marking ZY RF amplifier

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO)
30V
集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO)
20V
集电极连续输出电流IC
Collector Current(IC)
20mA
截止频率fT
Transtion Frequency(fT)
550MHz
直流电流增益hFE
DC Current Gain(hFE)
120~240
管压降VCE(sat)
Collector-Emitter Saturation Voltage
300mV/0.3V
耗散功率Pc
Power Dissipation
150mW/0.15W
Description & ApplicationsDescription • RF amplifier Features • High current transition frequency fT=550MHz(Typ.), [VCE=6V, IE=-1mA] • Low output capacitance : Cob=1.4pF(Typ.) [VCB=6V, IE=0] • Low base time constant and high gain • Excellent noise response
描述与应用描述 •RF放大器 特点 •高电流转换频率       FT =550MHz的(典型值),VCE=6V,IE=1毫安] •低输出电容:       COB=1.4pF(典型值)[VCB =6V,IE = 0] 基数较低的时间常数和高增益 •优异的噪声响应
