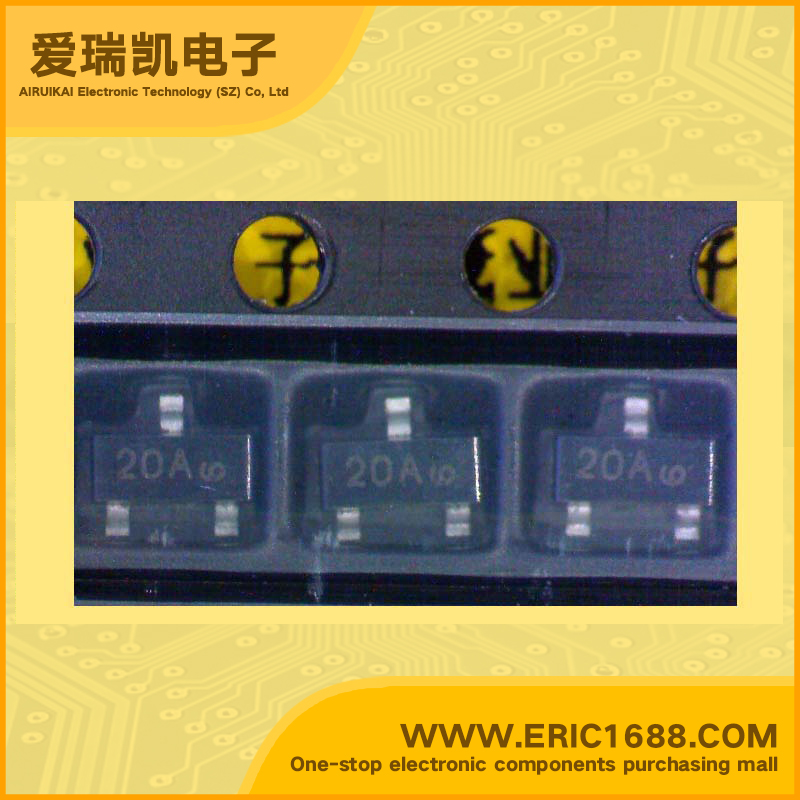

SZMMBZ20VALT1G TVS/ESD 17V 1.4A 0.225W/225mW SOT23-20V marking 20A
| 极性 Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | 17V |
| 反向击穿电压VBR Breakdown Voltage | 20V |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | 40W |
| 峰值脉冲电流IPPm Peak Forward Surge Current | 1.4A |
| 额定耗散功率Pd Power dissipation | 0.225W/225mW |
| Description & Applications | Specification Features: • 24 and 40 Watt Peak Power Zener Transient Voltage Suppressors • SOT−23 Package Allows Either Two Separate Unidirectional Configurations or a Single Bidirectional Configuration • Working Peak Reverse Voltage Range − 3 V to 26 V • Standard Zener Breakdown Voltage Range − 5.6 V to 33 V • Peak Power − 24 or 40 W @ 1.0 ms (Unidirectional),per Figure 6 Waveform • ESD Rating: − Class 3B (> 16 kV) per the Human Body Model − Class C (> 400 V) per the Machine Model • Maximum Clamping Voltage @ Peak Pulse Current • Low Leakage < 5.0 A • Flammability Rating UL 94 V−0 • AEC−Q101 Qualified and PPAP Capable • SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements • Pb−Free Packages are Available |
| 描述与应用 | 规格特点： •24和40瓦的峰值功率齐纳瞬态电压抑制器 •SOT-23封装允许无论是两个独立的单向配置或单双向配置 •工作峰值反向电压范围 - 3 V至26 V •标准齐纳击穿电压范围 - 5.6 V至33 V •峰值电力 - 24或40：毫秒W@1.0（单向），每图6波形 •ESD额定值： - 3B级（16千伏）每人体模型 - C类（> 400 V）每机型号 •最大钳位电压峰值脉冲电流 •低漏<5.0？ •阻燃等级UL94 V-0 •通过AEC-Q101认证和PPAP能力 •SZ汽车和其他应用程序需要独特的前缀 网站和控制变更要求 •Pb-Free包可以 |
