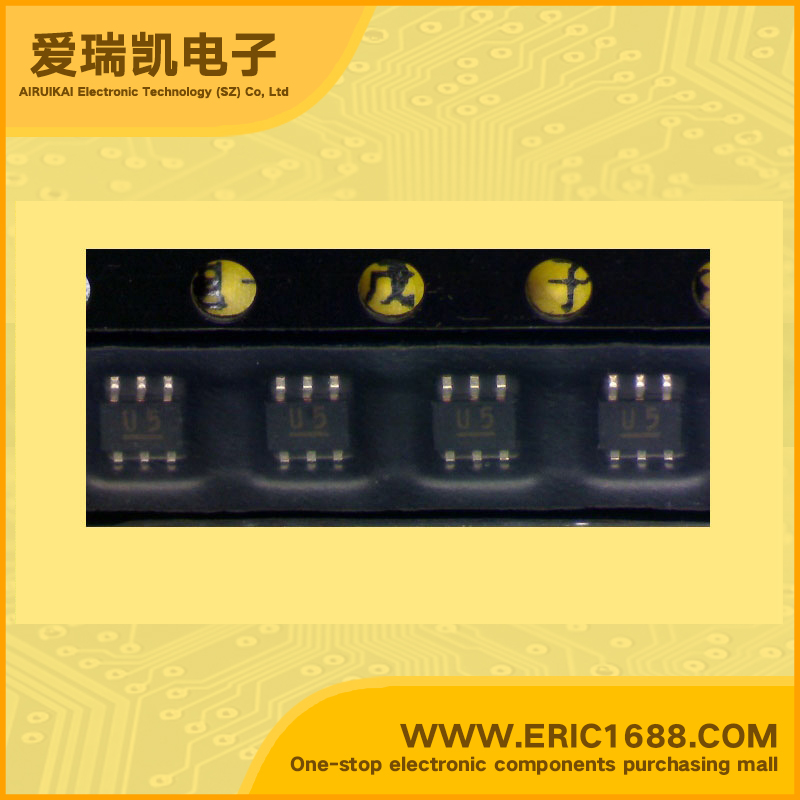

RF amplifier TA4017FT SOT-363 marking U5

Model：TA4017FT
Mark / screen / code / typing：U5
Manufacturer：
Date Code：05+NOPB
Package：SOT-363/SC70-6
Standard Package：3000
Min Order：10

Hot selling goods

Product description

频率 Frequency	45MHz,400MHz
P1dB	2dBm
增益 Gain	13dB,12.5dB
噪声系数 Noise Figure	3dB
RF 类型 RF Type
电源电压 Voltage - Supply	4.75V~5.25V
电源电流 Current - Supply	19mA
测试频率 Test Frequency
Description & Applications	FEATURES • TOSHIBA Bipolar Linear Integrated Circuit Silicon Monolithic • High gain: \|S21\|2 = 13dB (@45 MHz) • Low distortion: IM3 = 42dB (@45 MHz) • Operating supply voltage: VCC = 4.75 V~5.25 V • VHF Wide Band Amplifier Applications
描述与应用	特点 •东芝双极型线性集成电路硅单片 •高增益：\| S21\|13分贝（45兆赫） •低失真：IM3=42分贝（45兆赫） •工作电压：VCC=4.75 V〜5.25 V •VHF宽的频带放大器应用

List of related models

Commodity Description	Supplier model	Manufacturer	Explain	Stock
DLW21SN900SQ2L Common Mode Choke 0805-90R	DLW21SN900SQ2L Mark： Package：0805-90R	-	Batch number：05+ 05+	17500 Min Order:10
SMD Ceramic Capacitor CL10C2R7BB8NC 0603 COG 2.7PF 50V ±0.1pF	CL10C2R7BB8NC 0603 COG 2.7PF 50V Mark： Package：0603	-	Batch number：14+ROHS	0 Min Order:100
2SD2216J-R NPN Transistors(BJT) 60V 100mA/0.1A 150MHz 210 ~ 340 100mV/0.1V SOT-523/SC-75 marking YR general amplifier	2SD2216J-R Mark：YR Package：SOT-523/SC-75	-	Batch number：05+	2500 Min Order:10
R1112N211B LDO Voltage Regulator 2.1V 280mV/0.28V SOT-153/SOT23-5 marking FM Short-Circuit Protection Over-Temperature Protection	R1112N211B Mark：FM Package：SOT-153/SOT23-5	-	Batch number：04+	1200 Min Order:10
FDC6306P(USB10H) Complex FET -20V -1.9A SOT-163/SOT23-6/SSOT-6 marking 306 DC/DC converter load switch motor drive	FDC6306P(USB10H) Mark：306 Package：SOT-163/SOT23-6/SSOT-6	-	Batch number：05	0 Min Order:10
S-80830ANUP Voltage Supervisor 3V SOT-89 marking EDT low operating voltage，ultra low current consumption	S-80830ANUP Mark：EDT Package：SOT-89	-	Batch number：05+ 05+	2300 Min Order:10
MIC5205-3.3BM5TR LDO Voltage Regulator 3.3V 165mV/0.165V With Enable Pin SOT-153/SOT23-5 marking LB33 Short-Circuit Protection Over-Temperature Protection	MIC5205-3.3BM5 Mark：LB33 Package：SOT-153/SOT23-5	-	Batch number：06+ 02+	228 Min Order:10
