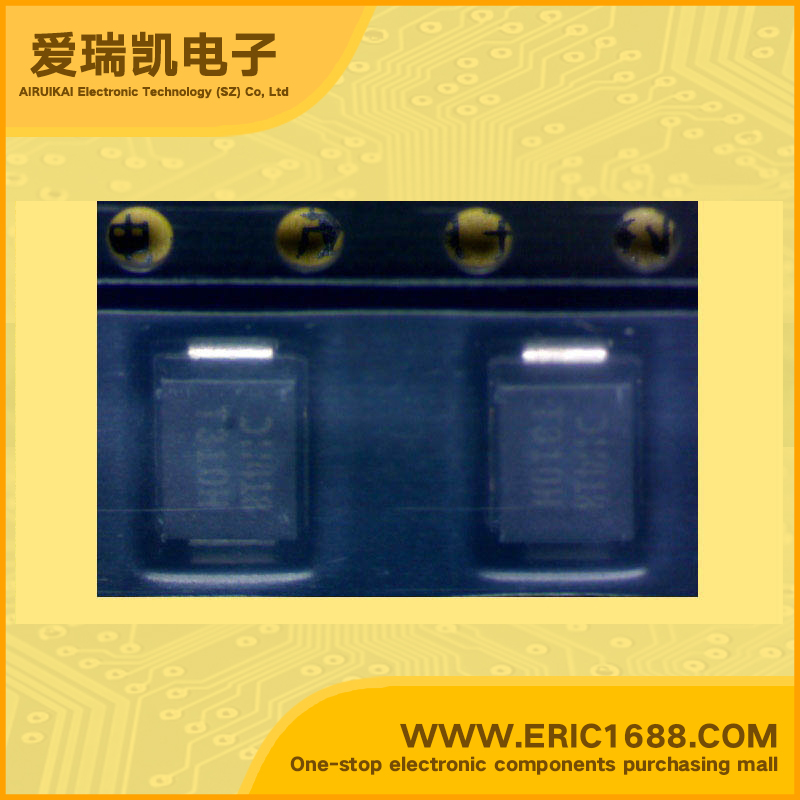

TB3100H-13 TVS/ESD 275V 100A DO-214AA/SMB-310V marking T310H
| 极性 Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | 275V |
| 反向击穿电压VBR Breakdown Voltage | 350V |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | |
| 峰值脉冲电流IPPm Peak Forward Surge Current | 100A |
| 额定耗散功率Pd Power dissipation | |
| Description & Applications | Specification Features: • 100A BIDIRECTIONAL SURFACE MOUNT THYRISTOR SURGE PROTECTIVE DEVICE • 100A Peak Pulse Current @ 10/1000μs • 400A Peak Pulse Current @ 8/20μs • 58 - 320V Stand-Off Voltages • Oxide-Glass Passivated Junction • Bidirectional Protection In a Single Device • High Off-State Impedance and Low On-State Voltage • Helps Equipment Meet GR-1089-CORE, IEC 61000-4-5, FCC Part 68, ITU-T K.20/K.21, and UL497B • UL Listed Under Recognized Component Index, File Number 156346 • Lead Free Finish/RoHS Compliant (Note 1) • Green Molding Compound (No Halogen and Antimony) |
| 描述与应用 | 规格特点： •100A双向表面贴装晶闸管浪涌保护器件 •100A峰值脉冲电流@10/1000μS •400A峰值脉冲电流@8/20μS •58 - 320V待机电压 •氧化物玻璃钝化结 •双向保护在一个单一的设备 •高阻抗和低通态电压关闭状态 •帮助设备符合GR-1089-CORE，IEC61000-4-5，FCC 第68部分，ITU-T K.20/K.21，UL497B •UL列在认可成份指数，文件号：156346 •铅涂层/符合RoHS标准（注1） •绿色模塑化合物（无卤素和锑） |
