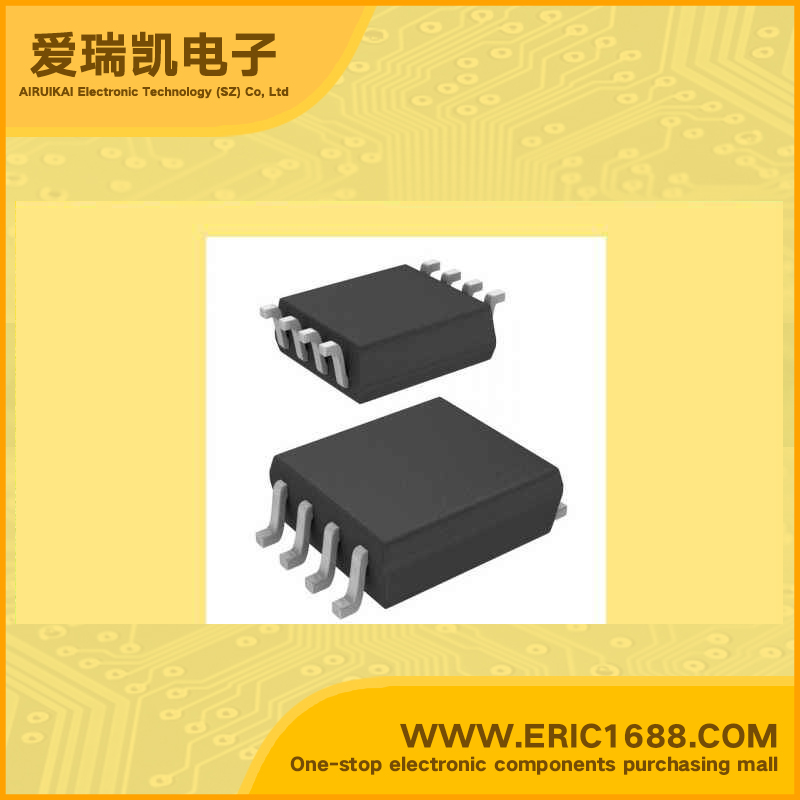

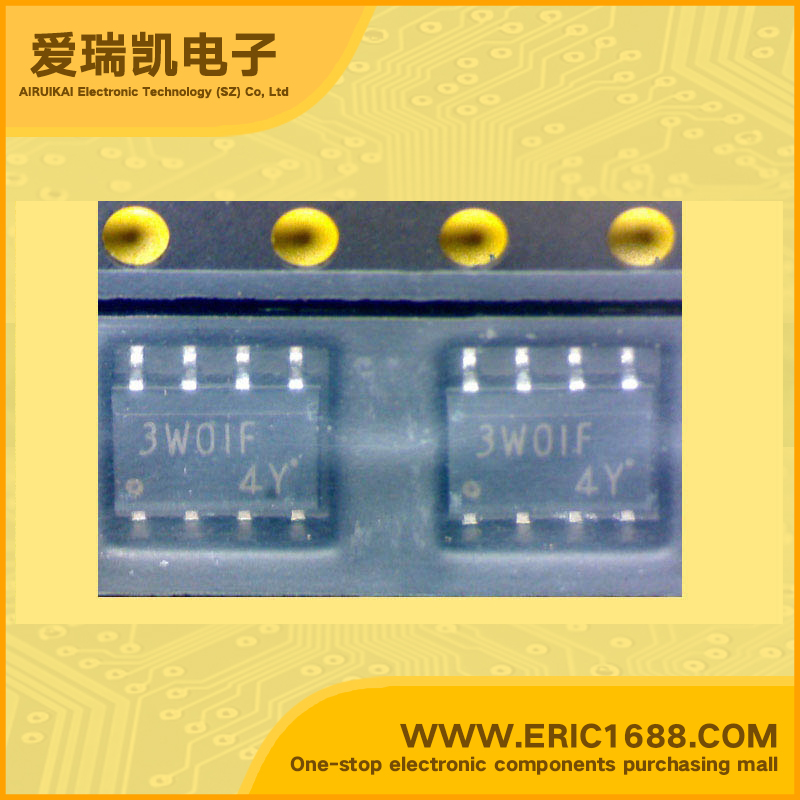

TC3W01F Signal Switch, Multiplexer, Decoder SM8 marking 3W01F

Hot selling goods

Product description
逻辑类型
Logic Type
解码器/多路分解器 Decoder/Demultiplexer
电路数
Number of Circuits
输入数
Number of Inputs
电源电压Vcc
Voltage - Supply
静态电流Iq
Current - Quiescent (Max)
单电源 Single Supply
输出高,低电平电流
Current - Output High, Low
2 V ~ 6 V
低逻辑电平
Logic Level - Low
The TC3W01 is a high speed C2MOS 2 to 3 LINE DECODER/DEMULTIPLEXER fabricated with silicon gate C2MOS technology.It achieves the high speed operation similar to equivalent LSTTL while maintaining the C2MOS low power dissipation.The active low enable input can be used for gating or it can be used as adata input for demultiplexing applications,When the enbale input is held "H",all three outputs are fixed at a high logic level independent of the other inputs.ALL input are queipped with protection circuits against static discharge or transient exvess voltage. High Speed Low Power Dissipation High Noise Immunity Output Drive Capability Symmetrical Output Impedance Balanced Propagation Delays Wide Operating Voltage Range
高逻辑电平
Logic Level - High
TC3W01是一个高速C2MOS的2至3线译码器/多路复用器,用硅栅C2MOS技术制作。它实现了类似等效输入通道的高速操作,而保持C2MOS的低功耗。低电平有效使能输入可以用于门,或它可以被用来作为用于多路复用器的应用程序的威刚输入。当使能输入为“H”,所有三个输出固定在一个高层次的逻辑,其他输入独立。 高速 低功耗 高抗干扰 输出驱动能力 对称的输出阻抗 平衡传输延时 宽工作电压范围
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
Description & Applications
描述与应用
