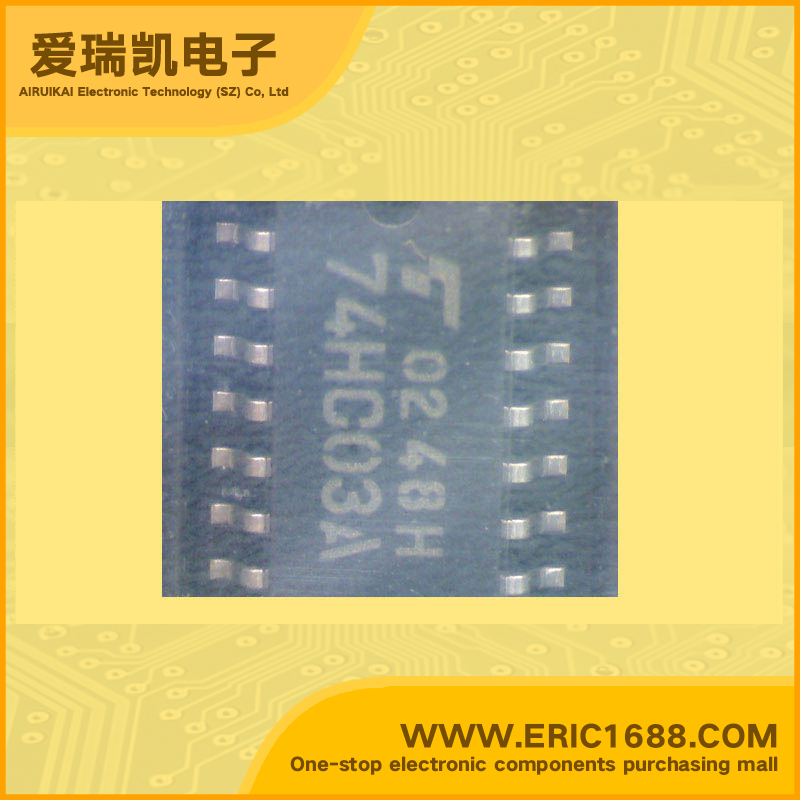

Integrated Circuit（IC） NAND gate TC74HC03AF-EL SOP14 marking
| 逻辑类型 Logic Type | 与非门 NAND Gate |
| 电路数 Number of Circuits | 4 |
| 输入数 Number of Inputs | 2 |
| 电源电压Vcc Voltage - Supply | 2V~6V |
| 静态电流Iq Current - Quiescent (Max) | 1uA |
| 输出高，低电平电流 Current - Output High, Low | -,5.2mA |
| 低逻辑电平 Logic Level - Low | 0.5 V ~ 1.8 V |
| 高逻辑电平 Logic Level - High | 1.5 V ~ 4.2 V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 13ns @ 6V，50pF |
| Description & Applications | Quad 2-Input NAND Gate (open drain) ；Features • High speed: tpz = 5 ns (typ.) at VCC = 5 V • Low power dissipation: ICC = 1 μA (max) at Ta = 25°C • High noise immunity: VNIH = VNIL = 28% VCC (min) • Output drive capability: 10 LSTTL loads • Wide operating voltage range: VCC (opr) = 2~6 V • Open drain structure • Pin and function compatible with 74LS03 |
| 描述与应用 | 四路2输入与非门（开漏）;特点 •高速：TPZ=5纳秒（典型值），VCC= 5 V •低功耗：ICC=1μA（最大值）在大= 25°C •高噪声，免疫力：VNIH= VNIL=28％VCC（分钟） •输出驱动能力：10输入通道负载 •宽工作电压范围：VCC（OPR）=2〜6 V •开漏结构 •引脚和功能兼容74LS03 |
