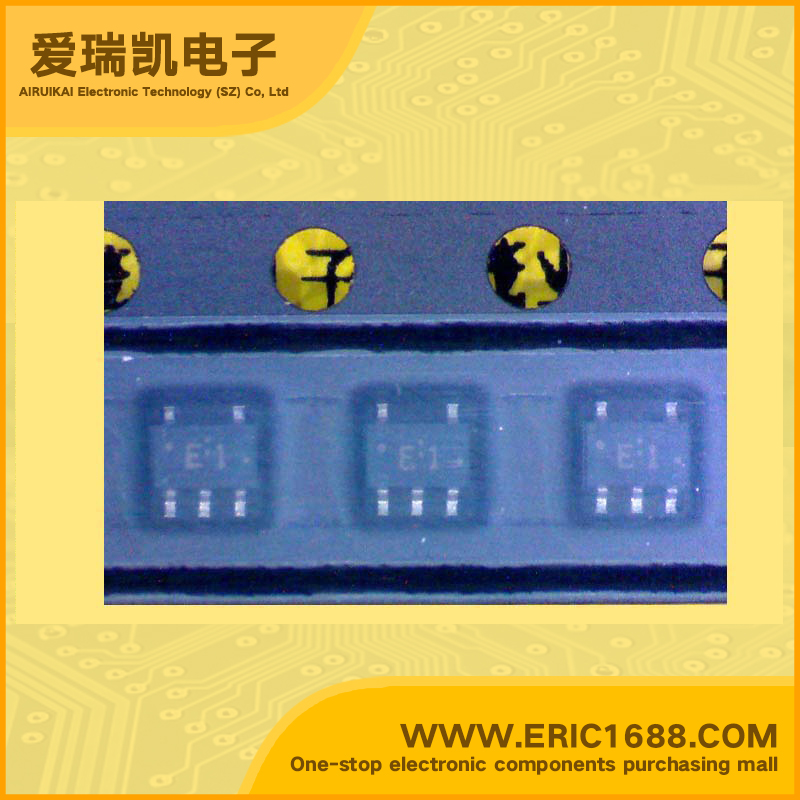

Integrated Circuit（IC） NAND gate TC7S00FU SOT-353/USV marking E1
| 逻辑类型 Logic Type | 与非门 NAND Gate |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 2 |
| 电源电压Vcc Voltage - Supply | 2V~6V |
| 静态电流Iq Current - Quiescent (Max) | 1µA |
| 输出高，低电平电流 Current - Output High, Low | -2.6mA,2.6mA |
| 低逻辑电平 Logic Level - Low | 0.5V~1.8V |
| 高逻辑电平 Logic Level - High | 1.5v~4.2V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 17ns @ 6V，50pF |
| Description & Applications | The TC7S00F is a high speed CMOS 2-INPUT NAND GATE fabricated with silicon gate C2mos technology |
| 描述与应用 | TC7S00F是一种高速CMOS 2输入与非门制作与硅栅C2MOS技术 |
