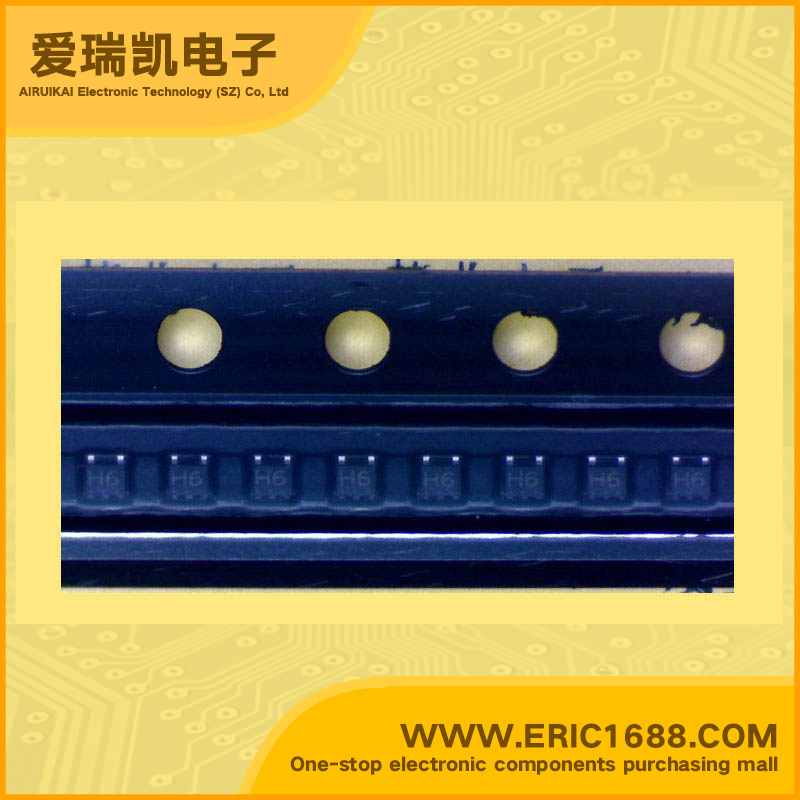

Integrated Circuit（IC） inverter TC7SHU04FU SOT-353/USV marking H6
| 逻辑类型 Logic Type | 反相器 Inverter |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 1 |
| 电源电压Vcc Voltage - Supply | 2V~5.5V |
| 静态电流Iq Current - Quiescent (Max) | 2uA |
| 输出高，低电平电流 Current - Output High, Low | -8mA,8mA |
| 低逻辑电平 Logic Level - Low | 0.3v |
| 高逻辑电平 Logic Level - High | 1.7v |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 7.7ns @ 4.5V ~ 5.5V，50pF |
| Description & Applications | INVERTER (Un-Buffer) ；High speed: tpd = 3.5 ns (typ.) at VCC = 5 V Low power dissipation: ICC = 2 μA (max) at Ta = 25°C High noise immunity: VNIH = VNIL = 10% VCC (min) 5.5V tolerant input. Wide operating voltage range: VCC (opr) = 2~5.5 V |
| 描述与应用 | 逆变器（非缓冲区）;高速：TPD = VCC= 5 V3.5纳秒（典型值） 低功耗：ICC= 2μA（最大值）在Ta= 25°C 高抗干扰性：VNIH= VNIL=10％VCC（分钟） 5.5V宽容输入。 宽工作电压范围：VCC（OPR）=2〜5.5 V |
