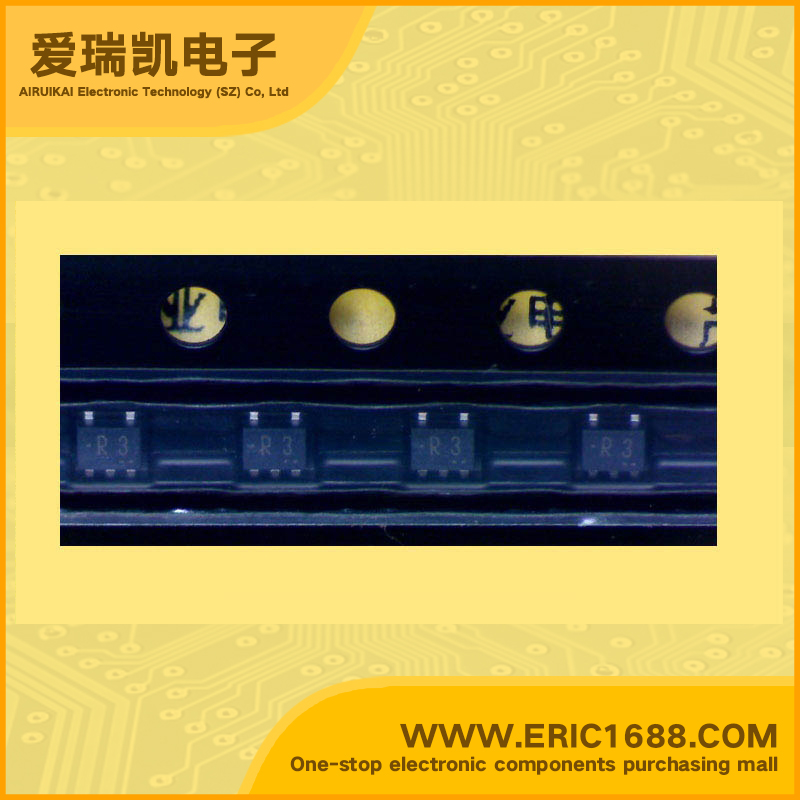

Integrated Circuit（IC） NOR gate TC7SZ02AFE SOT-553/ESV marking R3
| 逻辑类型 Logic Type | 或非门 NOR Gate |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 2 |
| 电源电压Vcc Voltage - Supply | 1.5v~5.5v |
| 静态电流Iq Current - Quiescent (Max) | 2µA |
| 输出高，低电平电流 Current - Output High, Low | -24mA,24mA |
| 低逻辑电平 Logic Level - Low | 0.25v~0.3v |
| 高逻辑电平 Logic Level - High | 0.7v~0.75v |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 2.4ns @ 5V，50pF |
| Description & Applications | 2 Input NOR Gate ；High output drive: ±24 mA (min.) @VCC = 3 V • Super high speed operation: tPD 2.4 ns (typ.) @VCC = 5 V, 50 pF • Operation voltage range: VCC = 1.8~5.5 V • Supply voltage data retention: VCC = 1.5~5.5 V • Latch-up performance: ±500 mA or higher • ESD performance: Human body model > ±2000 V Machine model > ±200 V • Power down protection is provided on all inputs. • Matches the performance of TC74LCX series when operated at 3.3 V VCC |
| 描述与应用 | 2输入非或门;高输出驱动器：±24毫安（最小值）@ VCC=3 V •超高速运转：TPD2.4纳秒（典型值） @ VCC = 5 V，50 pF的 •工作电压范围：VCC=1.8〜5.5 V •电源电压数据保存：VCC=1.5〜5.5 V •闭锁性能：±500 mA或更高 •ESD性能：人体模型>±2000 V 机模型>±200 V •掉电保护是对所有投入。 •匹配的性能时TC74LCX系列工作在3.3 V VCC |
