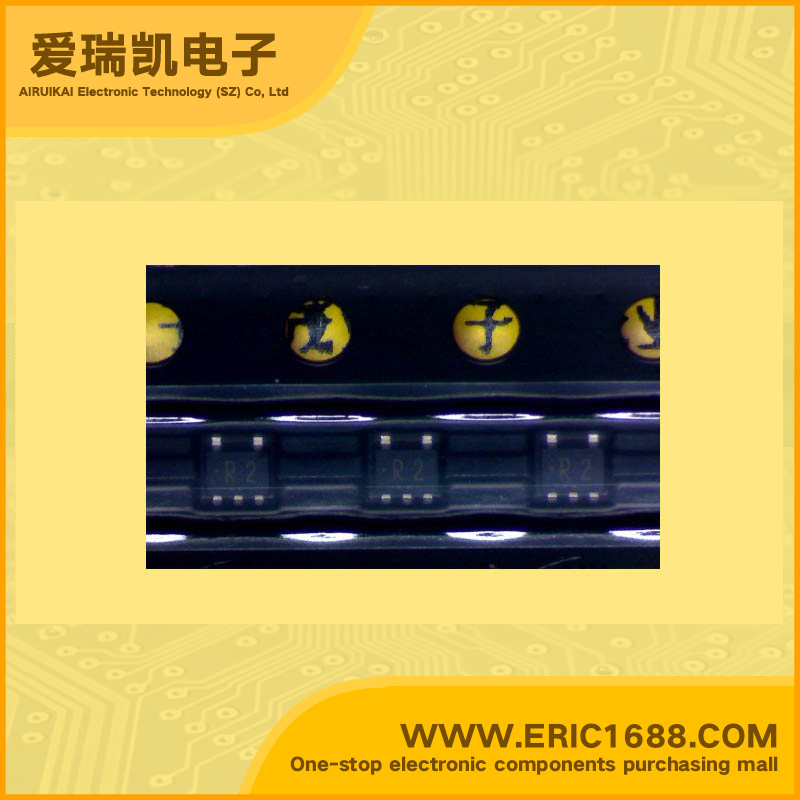

Integrated Circuit（IC） AND gate TC7SZ08AFE SOT-553/ESV marking R2
| 逻辑类型 Logic Type | 与门 AND Gate |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 2 |
| 电源电压Vcc Voltage - Supply | 1.8V~5.5V |
| 静态电流Iq Current - Quiescent (Max) | 2µA |
| 输出高，低电平电流 Current - Output High, Low | -32mA,32mA |
| 低逻辑电平 Logic Level - Low | 0.25V~0.3V |
| 高逻辑电平 Logic Level - High | 0.7V~0.75v |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 4.5ns @ 4.5V~5.5V，50pF |
| Description & Applications | 2 Input AND Gate ；High output drive: ±24 mA (min) at VCC = 3 V • Super high speed operation: tpd 2.7 ns (typ.) at VCC = 5 V, 50 pF • Operation voltage range: VCC (opr.) = 1.8~5.5 V • Supply voltage data retention: VCC = 1.5~5.5 V • 5.5-V tolerant inputs • Matches the performance of TC74LCX series when operated at 3.3 -V VCC |
| 描述与应用 | 高输出驱动器：±24 mA（分钟）2输入与门; 在VCC= 3 V •超高速运转：TPD2.7纳秒（典型值） 在VCC = 5 V，50 pF的 •工作电压范围：VCC（opr.） =1.8〜5.5 V •电源电压数据保存：VCC=1.5〜5.5 V •5.5-V宽容输入 •操作时的性能相匹配的TC74LCX系列 3.3-V的VCC |
